Commercial Hand Dryer Spec Sheet: A Contractor’s Guide
A commercial hand dryer spec sheet is a standardized technical document listing all critical performance, electrical, and dimensional data required to evaluate, procure, and install a hand dryer in a commercial facility. For construction professionals and facility managers, this document is the primary reference for comparing models, confirming code compliance, and planning electrical rough-in work. Brands like Excel Dryer, Dyson, ASI, Palmer Fixture, Bobrick and Saniflow publish spec sheets that cover everything from supply voltage to noise levels to ADA sensor placement. Without this data, you are making procurement decisions based on marketing copy rather than verified engineering specifications.
What key specifications are listed on a commercial hand dryer spec sheet?

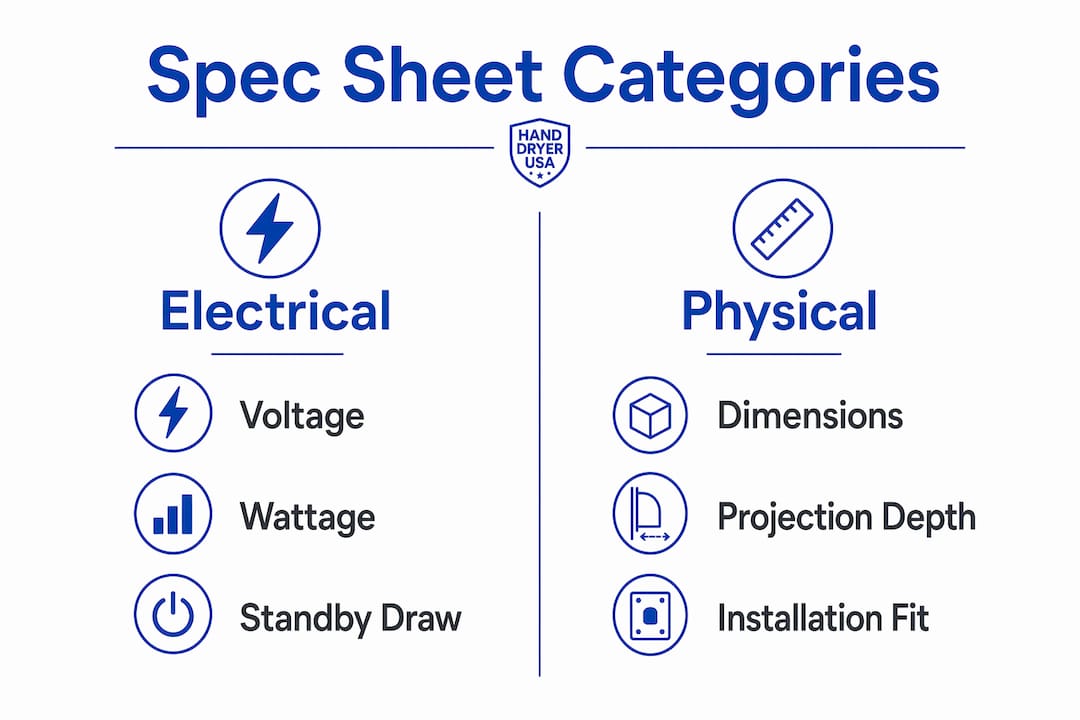

A commercial hand dryer spec sheet typically organizes data into four categories: electrical, performance, physical, and compliance. Each category serves a distinct purpose in the procurement and installation process.
Electrical specifications define the power requirements your building must support. Supply voltage and power rating are the first figures to check. For example, the ThinAir TA-SB hand dryer is available in multiple voltage configurations, including 110–120V and 208–240V models, allowing contractors to match the unit to the building’s electrical infrastructure. Electrical specifications such as voltage, amperage draw, and wattage are critical during the design and installation process, as they determine circuit requirements, breaker sizing, and wiring specifications. Selecting the incorrect voltage is one of the most common installation mistakes and can result in costly delays or equipment damage.
Performance specifications help determine how the hand dryer will perform in real-world restroom environments. Key metrics include:
Dry Time: The ThinAir dries hands in approximately 14 seconds, providing a fast and efficient user experience while reducing restroom congestion in high-traffic facilities.
Air Velocity: Delivering an airspeed of up to 224 MPH, the ThinAir uses a focused sheet of air to quickly remove water from hands without relying on excessive heat.
Noise Level: Operating at approximately 68 dB, the ThinAir is significantly quieter than many traditional high-speed hand dryers, making it well-suited for offices, schools, libraries, and other noise-sensitive environments.
Physical specifications determine whether the unit is compatible with the installation location. The ThinAir TA-SB measures approximately 11.8" H × 10.0" W × 4.0" D, allowing it to comply with ADA protrusion requirements when surface mounted. The brushed stainless steel cover provides exceptional durability and vandal resistance while maintaining a professional appearance in commercial restrooms. The corrosion-resistant finish is easy to clean and designed to withstand the demanding conditions commonly found in airports, schools, healthcare facilities, offices, and other high-traffic public spaces.
Compliance and certification data confirm the unit meets applicable standards. Look for ADA compliance notation, GS certification, UL listing, and energy ratings. These entries are not decorative. They are the documentation you submit during permit review and inspections.
| Spec Category | What to Look For | Why It Matters |
|---|---|---|
| Electrical | Voltage, wattage, standby draw | Circuit planning and energy cost |
| Performance | Dry time, airspeed, noise level | User experience and traffic flow |
| Physical | Dimensions, projection, weight, finish | Installation fit and maintenance |
| Compliance | ADA, UL, GS, energy certifications | Code adherence and permit approval |
Pro Tip: Download the spec sheet PDF before requesting a quote. Distributors sometimes list nominal specs online that differ from the actual data sheet. The PDF is the binding reference.
How to read and compare commercial hand dryer spec sheets effectively
Reading a single spec sheet is straightforward. Comparing two or three models accurately requires discipline, because manufacturers do not always use identical testing conditions or reporting formats.
Follow this process when evaluating multiple spec sheets side by side:
-
Normalize noise data first. Noise levels reported at different distances are not comparable. One brand may test at 1 meter while another tests at 1.5 meters. Consistent testing conditions are the only basis for a valid comparison. If the test distance is not stated, contact the manufacturer before including that figure in your evaluation matrix.
-
Verify electrical compatibility with your building system. A 277 V model will not function on a standard 120 V circuit. Cross-reference the spec sheet voltage against your electrical drawings before shortlisting any model. The wiring requirements for commercial hand dryers vary significantly by product category, and a spec sheet should confirm the dedicated circuit requirements explicitly.
-

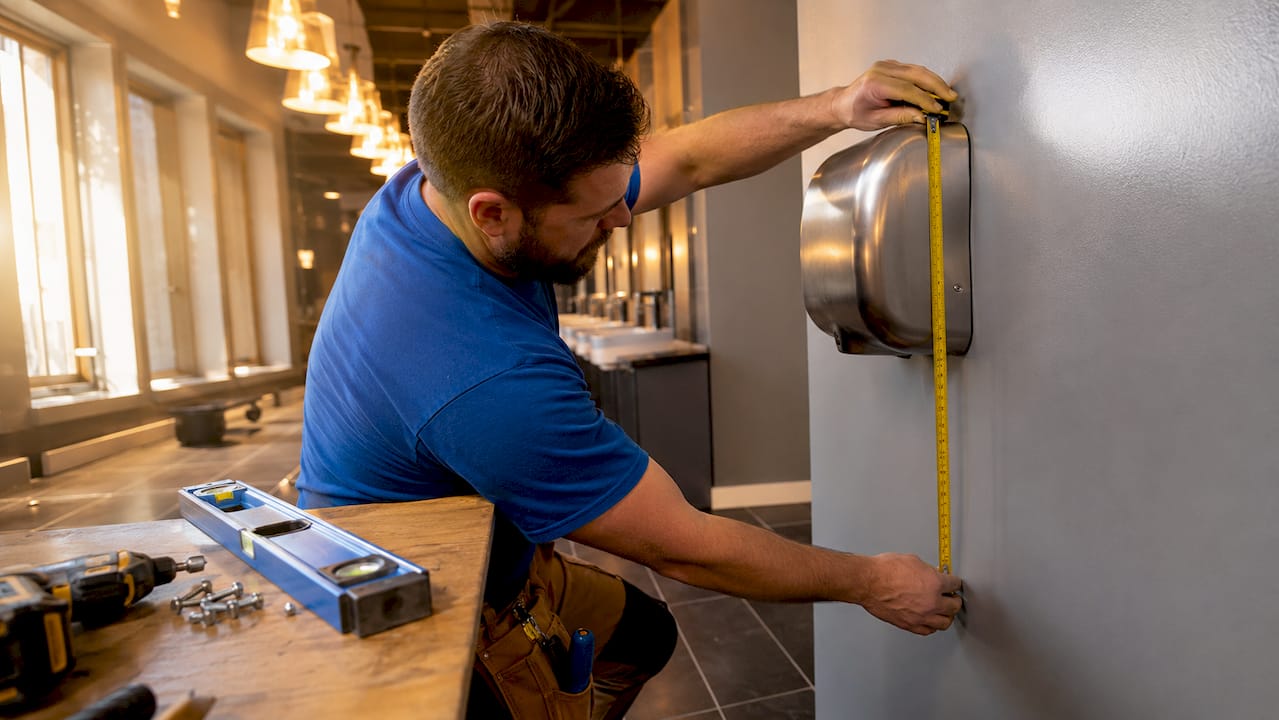

Check mounting depth against wall construction. Recessed models require a specific cavity depth. The spec sheet should state the minimum wall depth required. Reviewing recessed installation depth requirements alongside the spec sheet prevents costly rework after drywall is finished.
-
Compare dry times under the same load conditions. Some manufacturers test with a single pass of wet hands; others use a standardized wetness protocol. If the test method is not disclosed, treat dry time figures as directional rather than definitive.
-
Flag omitted data as a red flag. A spec sheet that omits standby power consumption, projection depth, or certification details is incomplete. Incomplete data sheets often indicate the product has not been tested to recognized standards, which creates compliance risk during inspection.
Pro Tip: Build a simple spreadsheet with one column per model and one row per spec category. Any cell you cannot fill from the spec sheet is a gap that requires follow-up before purchase.
Which features in spec sheets impact energy efficiency and maintenance costs?
The spec sheet is not just a procurement tool. It is a long-term cost document. The figures listed today translate directly into utility bills, maintenance labor, and replacement cycles over the life of the installation.
Power consumption and eco modes are the most immediate cost drivers. The Dyson Airblade operates at 900 W standard and 650 W in eco mode, with low standby draw between cycles. That difference compounds across hundreds of daily uses in a high-traffic restroom. Energy-efficient hand dryers with documented eco modes deliver measurable reductions in commercial electricity usage, and the spec sheet is where you confirm those modes exist and what their rated draw is.
Additional spec sheet features that affect ongoing costs include:
-
HEPA filtration: The Dyson Airblade uses a HEPA filter trapping 99.97% of particles as small as 0.3 microns. This specification matters for healthcare, food service, and education facilities where hygiene standards are regulated. Filter replacement intervals and costs should be factored into your total cost of ownership calculation.
-
Noise reduction accessories: XLERATOR publishes noise reduction nozzle options in its spec documentation. Quieter operation reduces complaints in office buildings and hospitality settings, which has indirect value in tenant satisfaction and lease renewals.
-
Material durability: Stainless steel units resist corrosion and require less frequent surface refinishing than powder-coated alternatives. The spec sheet finish designation tells you what cleaning chemicals are safe to use, which directly affects your commercial cleaning protocols and labor time.
-
Dry time and traffic flow: Faster dry times reduce restroom congestion. The relationship between dry time and restroom traffic flow is measurable in high-occupancy buildings, and a spec sheet that confirms sub-12-second performance gives you a defensible basis for specifying the unit.
-
Standby power draw: Low standby consumption is rarely highlighted in marketing materials but appears in detailed spec sheets. Over a year, standby draw across multiple units in a large facility adds a non-trivial amount to the utility bill.
How do spec sheets support compliance with building and ADA requirements?
Spec sheets are compliance documents as much as they are technical references. For construction professionals, the data on a hand dryer spec sheet feeds directly into permit applications, inspection checklists, and ADA compliance reviews.
ADA requirements establish that sensor controls must be mounted between 38 and 48 inches from the floor. The spec sheet must confirm the sensor placement height for the specific model you are specifying. A unit that looks ADA-compliant in a catalog photo may have a sensor positioned outside that range, creating liability exposure after installation. Reviewing ADA restroom requirements alongside the spec sheet is the correct workflow for any public-access facility.
Beyond sensor height, ADA compliance involves projection depth. Any wall-mounted object projecting more than 4 inches into a circulation path at a height between 27 and 80 inches requires a detectable warning at floor level. The spec sheet projection dimension tells you whether your chosen model triggers this requirement.
Key compliance data points to locate on every spec sheet:
-
ADA compliance notation: Confirms the unit meets accessibility standards for sensor height, projection, and operable controls.
-
UL or ETL listing: Required for most commercial building permits in the United States. Unlisted equipment will fail inspection.
-
GS or CE certification: Relevant for imported equipment and sometimes required by institutional procurement policies.
-
Electrical code compliance: Confirms the unit meets NEC requirements for commercial installations, including ground fault protection where applicable.
-
Installation clearances: Minimum distances from adjacent walls, countertops, and other fixtures required for safe and code-compliant operation.
| Compliance Requirement | Spec Sheet Data Point | Risk if Missing |
|---|---|---|
| ADA sensor height | Sensor placement dimension | Accessibility violation, civil penalty |
| ADA projection | Projection depth measurement | Circulation path obstruction |
| Electrical safety | UL/ETL listing | Failed inspection, permit denial |
| Installation clearance | Mounting clearance dimensions | Code violation, liability |
Installation planning that begins with the spec sheet rather than the product photo catches these issues before walls are finished and fixtures are mounted.
Key takeaways
A commercial hand dryer spec sheet is the single document that determines whether a unit is safe to install, code-compliant, and cost-effective to operate over its service life.
| Point | Details |
|---|---|
| Spec sheet as compliance tool | ADA sensor height, projection depth, and UL listing must appear on every spec sheet you evaluate. |
| Electrical data is non-negotiable | Voltage and wattage must match building supply before any model reaches your shortlist. |
| Noise data requires context | Always confirm the test distance before comparing noise levels across brands. |
| Eco modes reduce operating costs | Documented eco modes and standby draw figures translate directly into lower utility bills over time. |
| Omissions signal risk | A spec sheet missing certification data or installation clearances is a procurement red flag. |
What we have learned from years of spec sheet reviews
At HandDryerUSA, we have reviewed hundreds of spec sheets submitted by contractors and facility managers who were trying to finalize a specification for a project. The most consistent problem is not that professionals cannot read a spec sheet. It is that they receive an incomplete one and do not realize it until the inspection phase.
The second issue we see regularly is over-reliance on noise figures without checking test conditions. A 68 dB rating tested at 1 meter and a 75 dB rating tested at 2 meters may represent nearly identical real-world sound levels. Treating those numbers as directly comparable leads to the wrong model being specified for a noise-sensitive environment like a hospital corridor or a library restroom.
The feature we think is most underutilized in spec sheet reviews is standby power consumption. Facility managers focus on wattage during operation, which is reasonable. But a unit that draws 5 W continuously in standby across 20 restrooms in a large office building adds up to a measurable annual cost. That figure is on the spec sheet. It just rarely gets looked at.
Our recommendation is to treat the spec sheet review as a structured checklist process, not a casual scan. Build your evaluation matrix before you request quotes, and flag any model whose spec sheet cannot fill every required cell. The time spent at the specification stage is always less expensive than the time spent correcting a non-compliant installation.
Find the right hand dryer with full spec documentation
HandDryerUSA stocks ADA-compliant, touchless commercial hand dryers from Excel Dryer, Dyson Airblade, World Dryer, American Specialties (ASI), Palmer Fixture, Saniflow and Bobrick with complete spec sheets available for every model before you buy.
Browse the automatic touchless hand dryers category to filter by voltage, noise level, dry time, and ADA compliance status. For projects requiring recessed installation, the hands-in vertical and recessed models page includes dimensional drawings and mounting depth data. Every product listing links directly to the manufacturer spec sheet PDF. If you need help matching a spec to a project requirement, the HandDryerUSA team is available for pre-purchase consultation at no charge.
FAQ
What is a commercial hand dryer spec sheet?
A commercial hand dryer spec sheet is a technical document that lists a unit’s electrical requirements, performance metrics, physical dimensions, and compliance certifications. It is the primary reference document for procurement, installation planning, and code compliance verification.
What electrical data should I look for on a hand dryer spec sheet?
Look for supply voltage, power rating in watts or kilowatts, standby power draw, and circuit requirements. These figures determine whether your building’s electrical system can support the unit and what dedicated circuit specifications the electrician must follow.
How do I use a spec sheet to confirm ADA compliance?
Check the sensor placement height against the ADA requirement of 38 to 48 inches from the floor, and verify the projection depth does not exceed 4 inches into a circulation path without a floor-level detectable warning. The spec sheet should include an explicit ADA compliance notation.
Why do noise levels vary so much between spec sheets?
Noise levels are measured at different distances by different manufacturers, making direct comparisons unreliable without knowing the test conditions. Always confirm the reference distance before using noise figures to compare models.
Can a spec sheet replace installation instructions?
No. A spec sheet provides dimensional and electrical data but does not substitute for the full installation manual, which covers mounting hardware, wiring diagrams, and clearance requirements in detail. Use both documents together during the planning phase.
