Features & Benefits

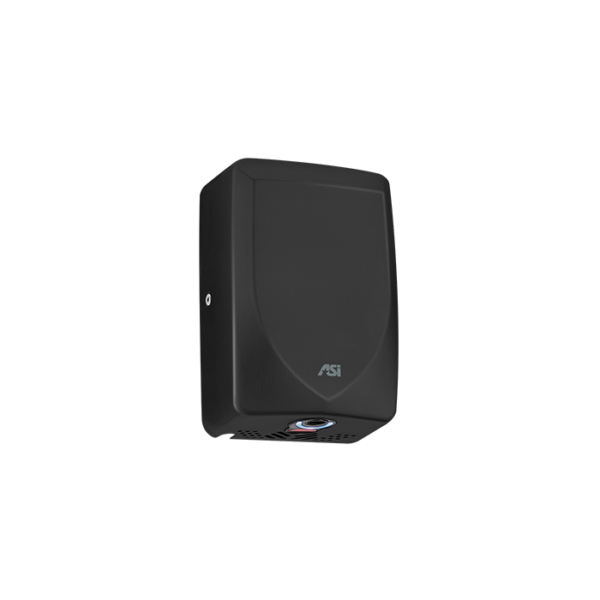

ASI 0192-1-41 High-Speed Hand Dryer is a compact, ADA-compliant unit designed for commercial restrooms requiring fast performance, energy efficiency, and long-term durability. Constructed from one-piece Type 304 stainless steel, this surface-mounted dryer delivers a stable, vandal-resistant design with eco-friendly operation and reduced operating costs. Concentrated airflow enables rapid drying in approximately 10–12 seconds, while adjustable settings allow facilities to tailor performance to their needs.
- High-speed drying dries hands in approximately 10–12 seconds.
- ADA compliant design supports accessible restroom installations.
- One-piece Type 304 stainless steel construction provides durability, corrosion resistance, and easy maintenance.
- Automatic operation with adjustable infrared sensor for touch-free activation.
- Variable heat settings allow heat to be turned on or off for energy savings and operational flexibility.
- Round concentrated air outlet enhances airflow efficiency for faster drying.
- Energy-efficient motor system helps reduce long-term operating costs.
- LED indicator light displays power status and guides users toward airflow.
- Low noise output rated at 74.0 dB-A at 2 meters.
ASI 0192-1-41 Hand Dryer Specifications
| Feature | Details |
|---|---|
| Model | ASI 0192-1-41 |
| Product Type | Surface-mounted high-speed hand dryer |
| Construction | One-piece Type 304 stainless steel |
| Compliance | ADA compliant |
| Voltage | 110–120 V (60 Hz) |
| Heat Option | ON / OFF selectable |
| Heating Element | Nichrome wire |
| Motor | 0.8 HP, 30,000 RPM, brush type with dual ball bearings |
| Operation | Automatic, adjustable infrared sensor |
| Dry Time | Approximately 10–12 seconds |
| Noise Level | 74.0 dB-A @ 2 m |
| Overall Dimensions | 6-27/32″ W × 10-1/16″ H × 4″ D (174 × 256 × 102 mm) |
| Use Case | Commercial restrooms, healthcare, hospitality, airports, schools, office buildings |
