Features & Benefits

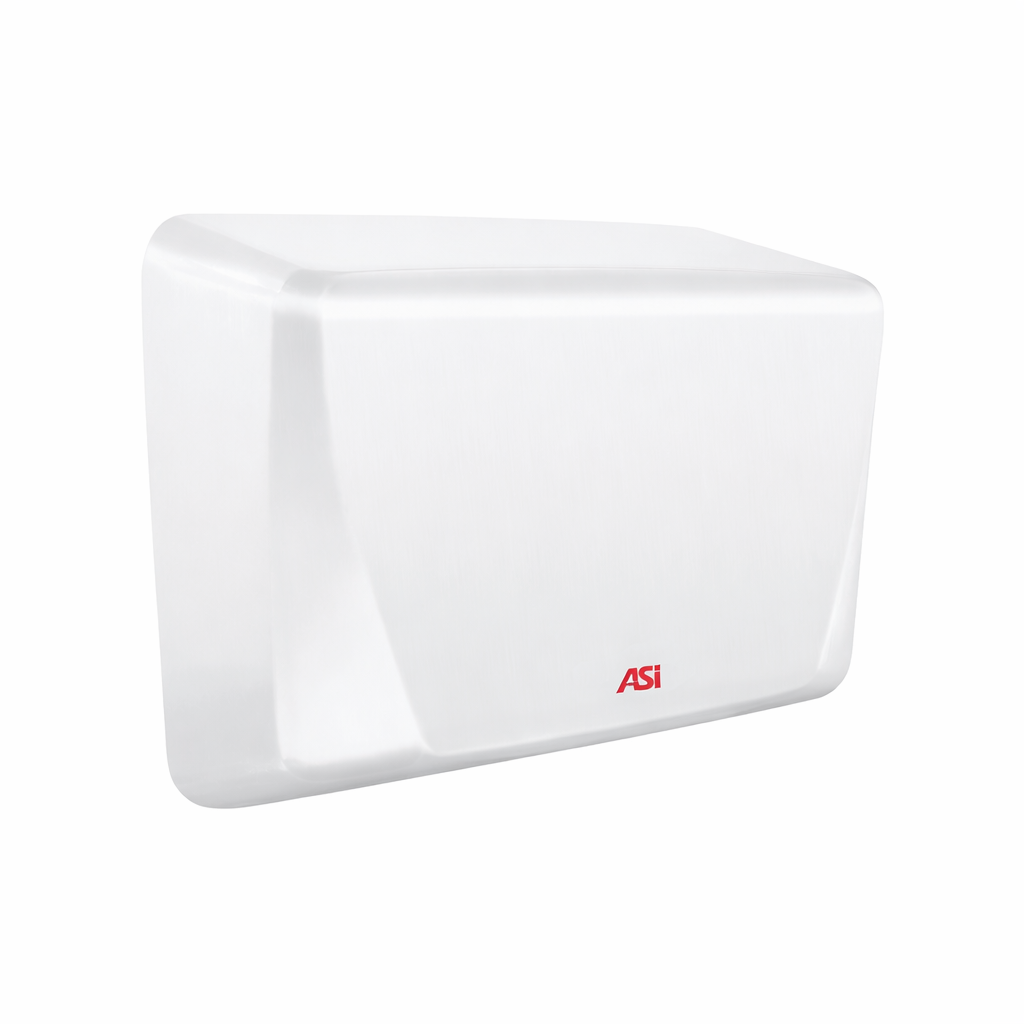

ASI 0199-1-00 High-Speed Hand Dryer (White) provides fast, hygienic hand drying with adjustable performance settings and a clean white finish suitable for modern commercial restrooms. Featuring automatic infrared sensor activation, owner-adjustable air speed and temperature controls, and selectable heating options, this dryer offers flexibility, energy efficiency, and dependable operation.
- Quick drying performance dries hands in under 15 seconds.
- Automatic infrared sensor operation ensures hygienic, touch-free activation.
- Owner-adjustable air speed and air temperature allows customized performance.
- On/off heating option enhances energy efficiency and operating control.
- Auto-resetting thermostat protects internal components.
- Automatic shutoff when hands are removed from the sensor zone.
- Durable white cover offers a clean, professional appearance.
- Low noise operation adjustable from 68.9 to 74.3 dB-A at 2 meters.
- 5-year limited warranty for long-term reliability.
ASI 0199-1-00 Hand Dryer Specifications
| Feature | Details |
|---|---|
| Model | ASI 0199-1-00 |
| Finish | White |
| Product Type | Surface-mounted automatic hand dryer |
| Motor | 0.67 HP, 16–29 KRPM adjustable, brush type with dual ball bearings |
| Voltage | 115–120 VAC, 50/60 Hz (1.0 kW max) |
| Heater | 325–450 Watts (adjustable) |
| Current | 10.4 Amps @ 110 VAC |
| Operation | Automatic infrared sensor |
| Dry Time | Under 15 seconds |
| Noise Level | 68.9–74.3 dB-A @ 2 m |
| Dimensions | 10-5/8″ W × 8-15/32″ H × 4″ D (270 × 215 × 102 mm) |
| Warranty | 5-year limited warranty |
| Use Case | Commercial restrooms, hospitality, offices, schools, healthcare facilities |
