Features & Benefits

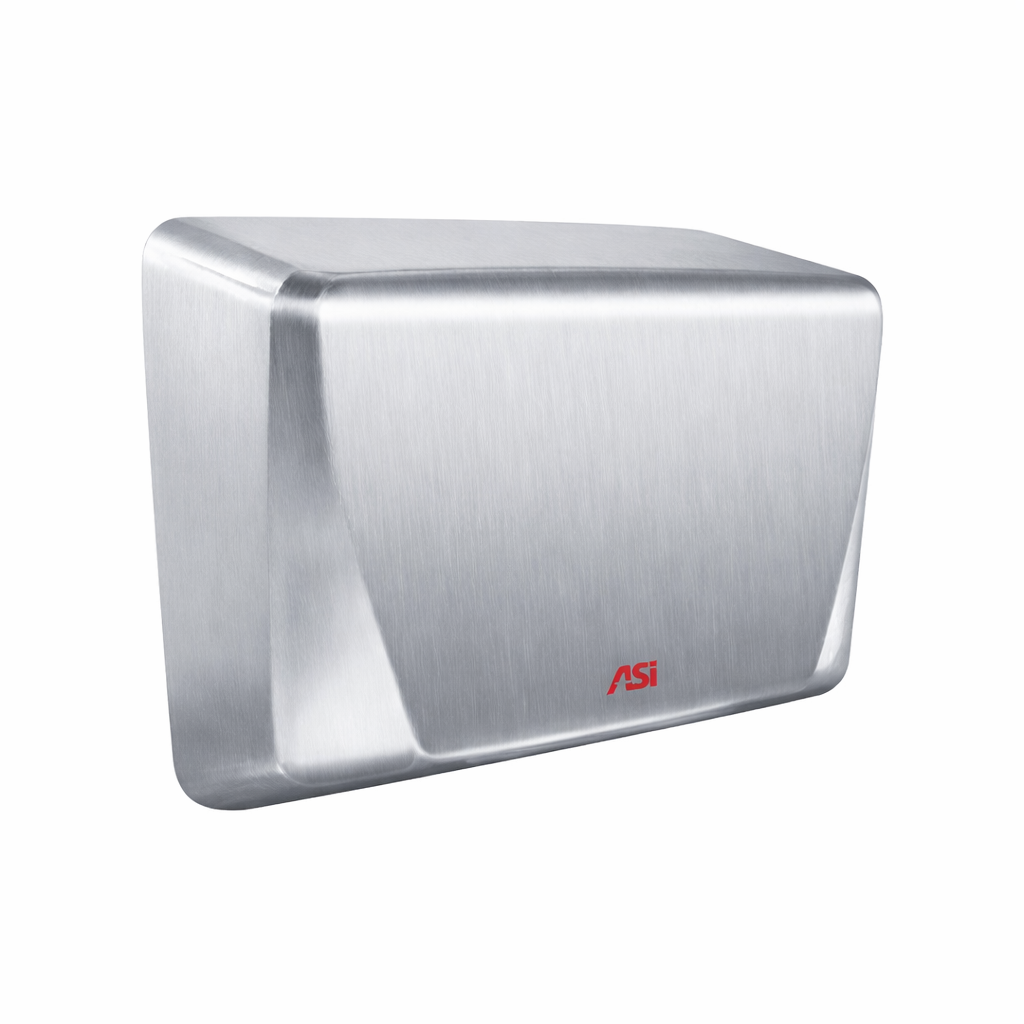

ASI 0199-1-93 High-Speed Hand Dryer (Satin Stainless Steel) combines rapid drying performance with adjustable operating flexibility in a durable satin stainless steel finish. Designed for commercial restroom environments, this automatic dryer uses an infrared sensor for hygienic, touch-free activation and allows owners to customize air speed, air temperature, and heating settings for optimized performance and energy efficiency.
- Fast drying performance dries hands in under 15 seconds.
- Automatic infrared sensor operation provides hygienic, no-touch activation.
- Owner-adjustable air speed and air temperature for customized performance.
- On/off heating option improves energy efficiency and operational control.
- Auto-resetting thermostat protects internal components from overheating.
- Automatic shutoff when hands are removed from the sensor zone.
- Satin stainless steel finish offers durability, corrosion resistance, and a modern architectural appearance.
- Low noise operation adjustable from 68.9 to 74.3 dB-A at 2 meters.
- 5-year limited warranty ensures long-term reliability.
ASI 0199-1-93 Hand Dryer Specifications
| Feature | Details |
|---|---|
| Model | ASI 0199-1-93 |
| Finish | Satin Stainless Steel |
| Product Type | Surface-mounted automatic hand dryer |
| Motor | 0.67 HP, 16–29 KRPM adjustable, brush type with dual ball bearings |
| Voltage | 115–120 VAC, 50/60 Hz (1.0 kW max) |
| Heater | 325–450 Watts (adjustable) |
| Current | 10.4 Amps @ 110 VAC |
| Operation | Automatic infrared sensor |
| Dry Time | Under 15 seconds |
| Noise Level | 68.9–74.3 dB-A @ 2 m |
| Dimensions | 10-5/8″ W × 8-15/32″ H × 4″ D (270 × 215 × 102 mm) |
| Warranty | 5-year limited warranty |
| Use Case | Commercial restrooms, hospitality, offices, schools, healthcare facilities |
