ASI 0663-T Velare™ BTM System – Stainless Steel Cabinet with Frameless Mirror, Foam Soap Dispenser & Paper Towel Dispenser
Description:

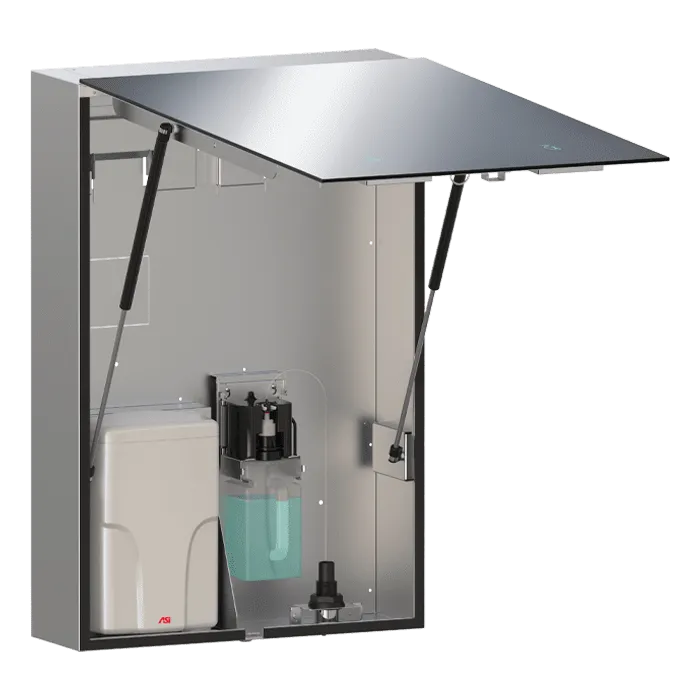

ASI’s Velare™ Behind-the-Mirror (BTM) system is engineered for elegance, durability, and safety, concealing consumables within a Type 304 stainless steel cabinet. The unit features a frameless tempered glass mirrored door with integrated backlit icons that indicate system functions from the bottom control panel of each module.
The mirrored door is constructed from 1/4″ (6 mm) thick tempered glass conforming to ASTM C-1048, with pencil edges and eased corners. It includes a stainless steel intermediate stiffener and stainless steel back plate with integral welded support mounts, hinge, and lock keeper.
The door is mounted using a full-width 3/16″ (Ø4.8 mm) concealed piano hinge and secured with a tumbler lock and key. Twin damped gas springs assist opening from 15° to 90°, providing smooth motion with soft-stop cushioning at full open and full close positions.
System Overview
- Wall-mounted behind-the-mirror stainless steel cabinet system
- Integrated hands-free foam soap dispenser (0.4 gal / 1.5 L capacity)
- Built-in paper towel dispenser with 500-towel capacity
- Frameless mirror with backlit function indicators
- Designed for high-traffic commercial restroom environments
Electrical Requirements
- Mirror backlighting: 100–240 VAC
- Powered via quad (double-duplex) outlet (by others)
- Standard appliance power cords and AC adapters installed at installation
Soap Requirements
- Viscosity Range: 0 – 100 mPa·s (cP)
- pH Range: 5.5 – 8.5
Design Features
- Artfully Concealed: Consumables hidden behind mirror for a clean architectural appearance
- Concealed Soap Dispenser: High-capacity system suitable for high-frequency use environments
- Paper Towel Integration: 500-towel capacity for efficient hand drying
- Optional filler modules (FM) available as spacers between cabinets
Dimensions
- Overall: 23-5/8″ x 35-7/16″ x 7-9/16″ (600 x 900 x 192 mm)
