Features & Benefits

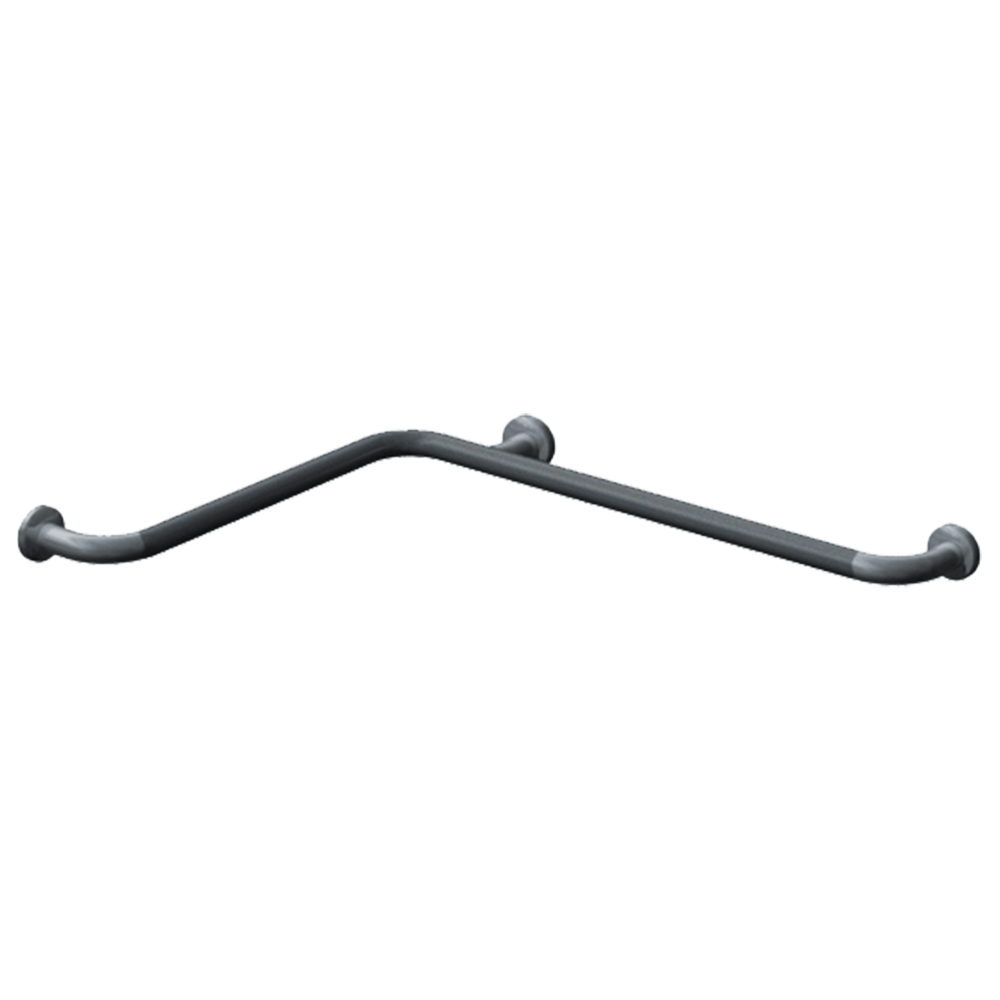

ASI 3760-P Horizontal Grab Bar, 30″ x 18″ – Peened is a compact and durable support solution designed for accessible restrooms and commercial environments. Its space-efficient horizontal configuration and enhanced gripping surface provide reliable stability while maintaining a clean, concealed mounting appearance.
- Horizontal grab bar (30″ x 18″) offers compact support for smaller spaces.
- Peened finish on 1-1/4″ (32 mm) diameter tubing enhances grip and reduces slip risk.
- Snap-on flange cover conceals mounting screws for a smooth, finished appearance.
- Concealed mounting flange (3-1/8″ O.D.) with 2 screw holes and 3 locking dimples ensures secure installation.
- Type 304 stainless steel construction provides durability and corrosion resistance.
- 22 gauge stainless steel cover plate enhances protection and aesthetics.
- Satin finish with peened texture delivers a professional look with added safety.
ASI 3760-P Horizontal Grab Bar Specifications
| Feature | Details |
|---|---|
| Model | ASI 3760-P |
| Product Type | Horizontal grab bar (peened, concealed mounting) |
| Configuration | 30″ x 18″ |
| Bar Diameter | 1-1/4″ (32 mm) O.D. |
| Material | Type 304 stainless steel |
| Flange Diameter | 3-1/8″ (79 mm) O.D. |
| Cover Plate | 3-3/16″ (81 mm) diameter, 22 gauge stainless steel |
| Mounting | Concealed flange with snap-on cover |
| Finish | Satin finish with peened texture |
| Use Case | Accessible restrooms, commercial washrooms, and healthcare facilities |
