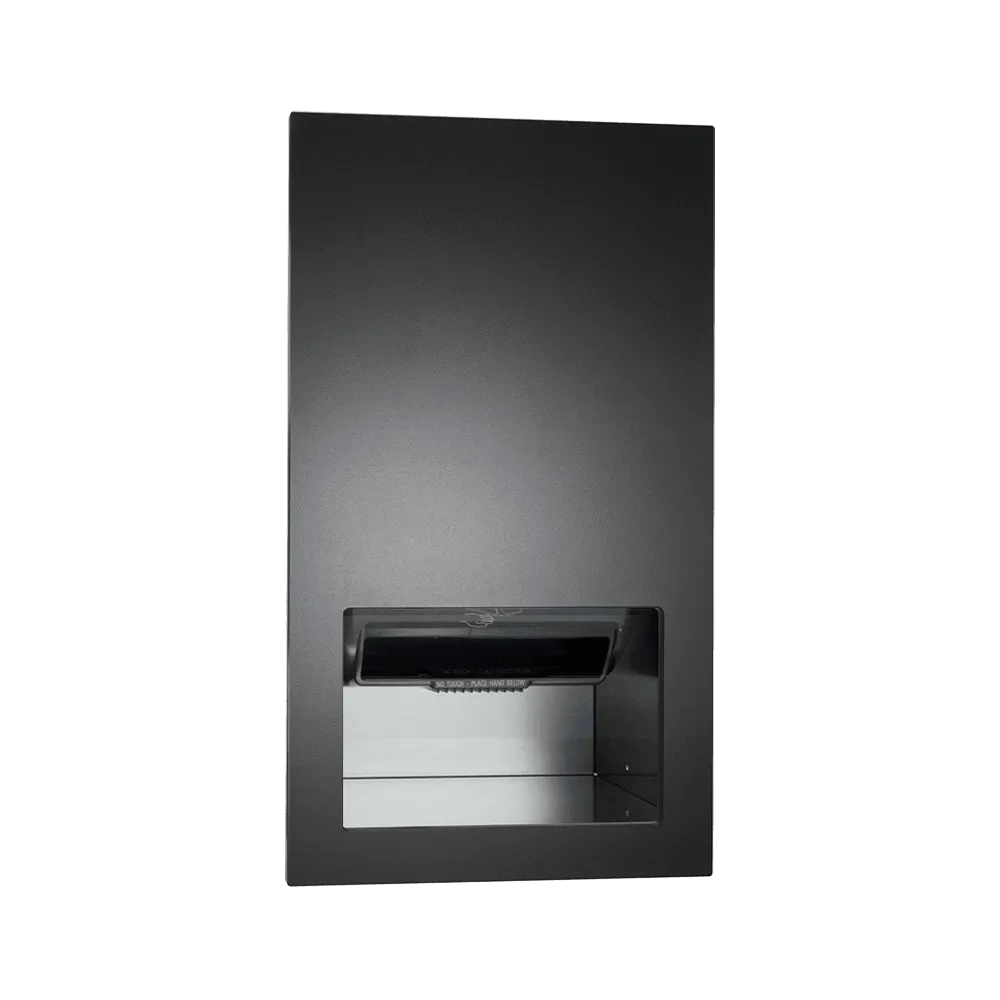

ASI 645210AC-41 PIATTO™ Completely Recessed Automatic Roll Paper Towel Dispenser – AC Power – Matte Black Phenolic Door combines advanced touch-free towel dispensing technology with the refined, minimalist design of the PIATTO™ collection. Designed to be fully recessed and perfectly coplanar with the washroom wall, this sophisticated dispenser features concealed hardware, a premium matte black phenolic door, and automatic sensor operation for a seamless, hygienic restroom experience.
- Completely recessed coplanar design delivers a clean, seamless architectural appearance exclusive to the PIATTO™ collection.
- Automatic touch-free dispensing uses proximity sensor activation for hygienic, hands-free towel dispensing.
- Premium matte black phenolic door enhances contemporary restroom aesthetics with a sleek modern finish.
- Concealed hardware system preserves the minimalist appearance by hiding hinges and mounting components.
- Field-adjustable furniture-quality hinges provide precise installation alignment and long-term reliability.
- High-capacity roll towel system accommodates one standard roll up to 800 ft. long and one stub roll for continuous operation.
- Automatic stub roll transfer automatically switches to the main roll when the stub roll is depleted.
- Owner-adjustable dispensing controls allow customized towel length, delay timing, and paper-saving settings.
- Universal AC power operation includes a low-voltage adapter compatible with 110–240 VAC, 50/60 Hz power systems.
- Ideal for premium commercial washrooms including hospitality, healthcare, office, retail, and architectural environments.
ASI 645210AC-41 PIATTO™ Automatic Paper Towel Dispenser Specifications
| Feature | Details |
|---|---|
| Model | ASI 645210AC-41 PIATTO™ |
| Product Type | Completely recessed automatic roll paper towel dispenser |
| Door Material | Phenolic door |
| Door Finish | Matte black |
| Mounting Type | Fully recessed, coplanar wall installation |
| Operation | Automatic proximity sensor activation |
| Main Roll Capacity | One 8″ diameter × 8″ wide standard roll up to 800 ft. (244 m) long |
| Stub Roll Capacity | One 8″ wide stub roll up to 4″ diameter (102 mm) |
| Roll Transfer | Automatic transfer from stub roll to main roll |
| Dispensing Controls | Adjustable towel length, delay, and paper saver settings |
| Power Supply | AC plug-in low-voltage adapter included |
| Electrical Input | 110–240 VAC, 50/60 Hz |
| Electrical Output | 5 VDC @ 1A |
| Certifications | C-UL-US and CE approved adapter |
| Hinge Type | 3-way adjustable concealed furniture-quality hinges |
| Latch Type | Internal spring-loaded latch |
| Finished Wall Opening (FWO) | 16-1/8″ W × 28-1/16″ H × 10″ D (410 × 713 × 254 mm) minimum |
| Unit Size | 16-1/16″ W × 28″ H × 9-13/16″ D (408 × 711 × 248 mm) |
| Use Case | Luxury commercial restrooms, hospitality, healthcare, offices, retail, architectural projects |
| Special Note | Made to order; not returnable |
