Features & Benefits

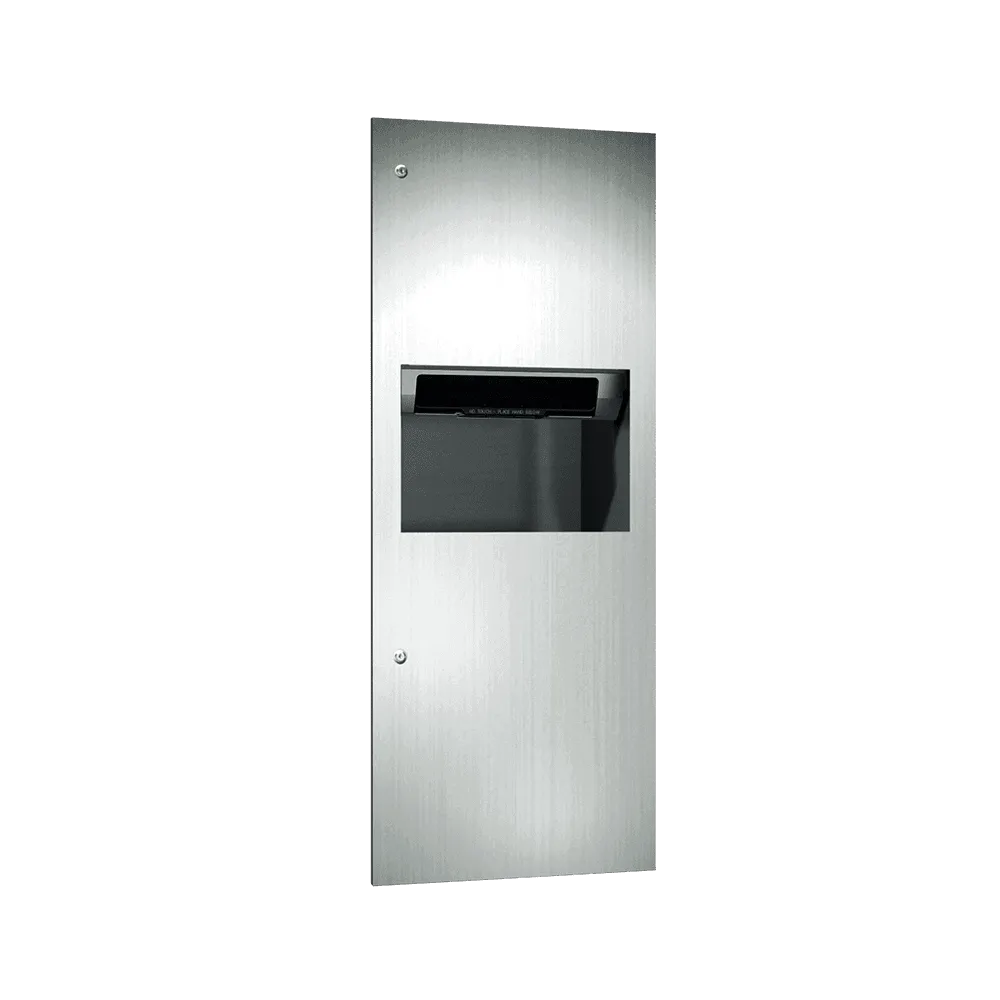

ASI 64696A Simplicity™ Automatic Recessed Roll Paper Towel Dispenser & Waste Receptacle (Battery Operated) is a high-capacity, touchless washroom solution designed for modern commercial environments requiring hygiene, efficiency, and convenience. Featuring proximity sensor activation and automatic towel dispensing, this recessed stainless steel unit delivers reliable performance with a large integrated waste receptacle.
- Touchless automatic dispensing system uses proximity sensing for hygienic, no-contact operation.
- High-capacity towel storage accommodates one 8″ × 8″ roll up to 800 ft. (244 m) plus one stub roll up to 4″ diameter (Ø102 mm).
- Automatic roll transfer system switches from stub roll to main roll when properly engaged.
- Integrated 9.9-gallon (37.3 L) waste receptacle provides maximum waste capacity for high-traffic restrooms.
- Battery-powered operation runs on four (4) D-size batteries (not included).
- Adjustable dispensing settings allow owner control of towel length, delay, and paper saver functions.
- Recessed installation design delivers a clean, flush wall appearance.
- Heavy-duty 304 stainless steel construction ensures durability, corrosion resistance, and long-term reliability.
- Tumbler lock system provides secure access and maintenance control.
- Staked piano hinges ensure smooth, durable door operation under frequent use.
- Hemmed dispensing opening promotes safe, controlled, and hygienic towel use.
ASI 64696A Simplicity™ Specifications
| Feature | Details |
|---|---|
| Model | ASI 64696A |
| Collection | Simplicity™ |
| Product Type | Recessed automatic roll paper towel dispenser and waste receptacle |
| Operation | Proximity sensing (no-touch) |
| Power Source | 4 × D-size batteries (not supplied) |
| Towel Capacity | One 8″ × 8″ roll up to 800 ft. (244 m) + stub roll |
| Stub Roll Capacity | Up to 4″ diameter (Ø102 mm) |
| Waste Capacity | 9.9 gal. (37.3 L) |
| Mounting | Recessed installation |
| Dispensing Control | Adjustable length, delay, and paper saver settings |
| Material | 304 stainless steel |
| Lock Type | Tumbler lock |
| Hinge Type | Staked piano hinge |
| Refill Method | Unlock door and replace towel roll manually |
| Overall Dimensions | 16-1/16″ W × 41-1/4″ H × 10-1/4″ D (408 × 1048 × 261 mm) |
| Wall Opening | 14-5/8″ W × 39-3/4″ H × 10″ D (371 × 1010 × 254 mm) |
| Use Case | Commercial washrooms, offices, hospitality, healthcare, education, high-traffic facilities |
