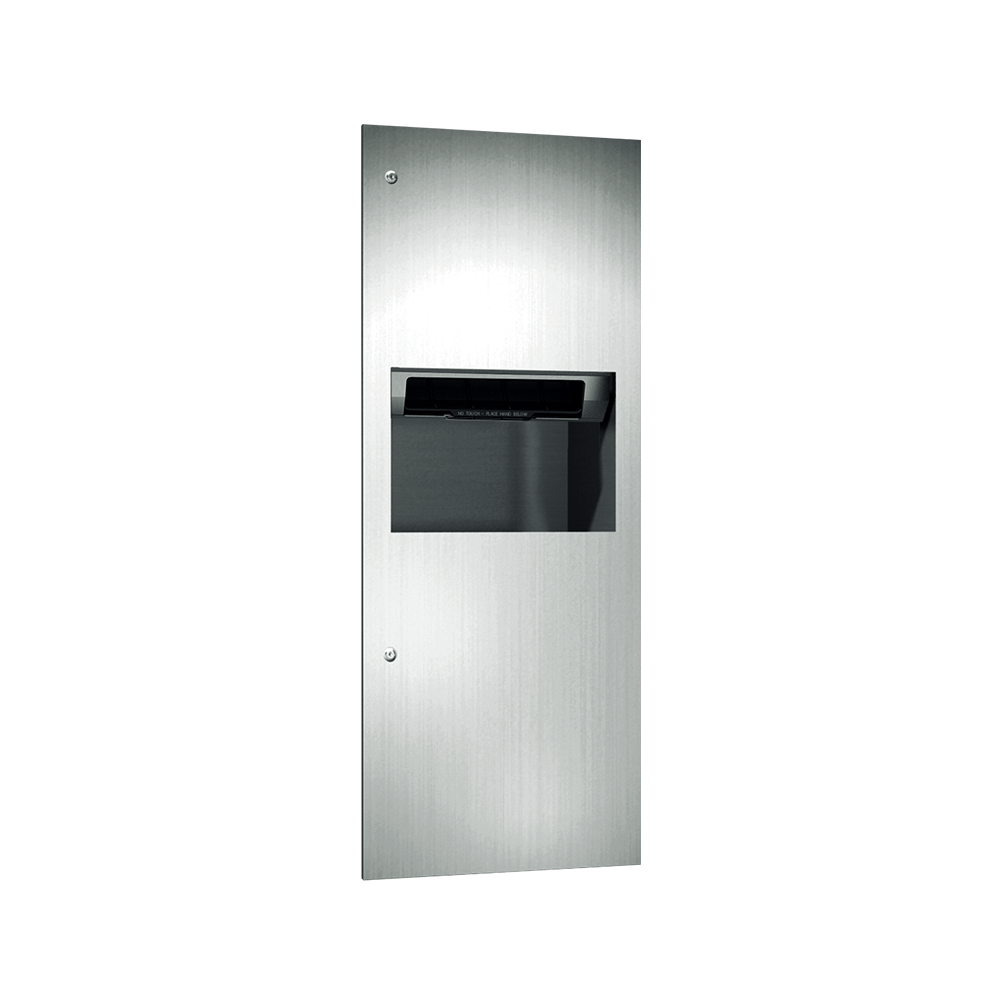

ASI 64696AC Simplicity™ Recessed Automatic Roll Paper Towel Dispenser & Waste Receptacle (110–240V / AC) is a high-capacity, touchless washroom solution engineered for hygienic and efficient operation in commercial facilities. Featuring automatic proximity sensing technology, AC-powered performance, and integrated waste management, this recessed stainless steel unit delivers dependable dispensing and modern functionality for high-use environments.
- Touchless automatic dispensing system uses proximity sensing for hygienic, no-contact towel delivery.
- High-capacity towel storage accommodates one 8″ × 8″ roll up to 800 ft. (244 m) plus one stub roll up to 4″ diameter.
- Automatic roll changeover system seamlessly transfers dispensing from stub roll to main roll.
- Integrated 9.9-gallon (37.3 L) waste receptacle supports busy commercial washrooms.
- AC-powered operation utilizes a supplied C-UL-US and CE approved low-voltage adapter.
- Wide voltage compatibility supports 110–240 VAC, 50/60 Hz electrical systems.
- Adjustable dispensing controls allow customization of towel length, delay, and paper saver settings.
- Recessed installation design provides a streamlined, professional appearance.
- Heavy-duty 304 stainless steel construction ensures durability, corrosion resistance, and easy maintenance.
- Tumbler lock system secures internal components and consumables.
- Staked piano hinges provide long-lasting strength and smooth door operation.
- Hemmed dispensing opening promotes safe, controlled, and hygienic towel dispensing.
ASI 64696AC Simplicity™ Specifications
| Feature | Details |
|---|---|
| Model | ASI 64696AC |
| Collection | Simplicity™ |
| Product Type | Recessed automatic roll paper towel dispenser and waste receptacle |
| Operation | Proximity sensing (no-touch) |
| Power Source | AC plug-in adapter (included) |
| Electrical Input | 110–240 VAC, 50/60 Hz |
| Adapter Output | 5VDC @ 1A |
| Certifications | C-UL-US and CE approved adapter |
| Towel Capacity | One 8″ × 8″ roll up to 800 ft. (244 m) + stub roll |
| Stub Roll Capacity | Up to 4″ diameter (Ø102 mm) |
| Waste Capacity | 9.9 gal. (37.3 L) |
| Mounting | Recessed |
| Control Settings | Adjustable towel length, delay, and paper saver switches |
| Material | 304 stainless steel |
| Lock Type | Tumbler lock |
| Hinge Type | Staked piano hinge |
| Overall Dimensions | 16-1/16″ W × 41-1/4″ H × 10-1/4″ D (408 × 1048 × 261 mm) |
| Wall Opening | 14-5/8″ W × 39-3/4″ H × 10″ D (371 × 1010 × 254 mm) |
| Use Case | Commercial washrooms, offices, hospitality, healthcare, education, high-traffic facilities |
