Features & Benefits

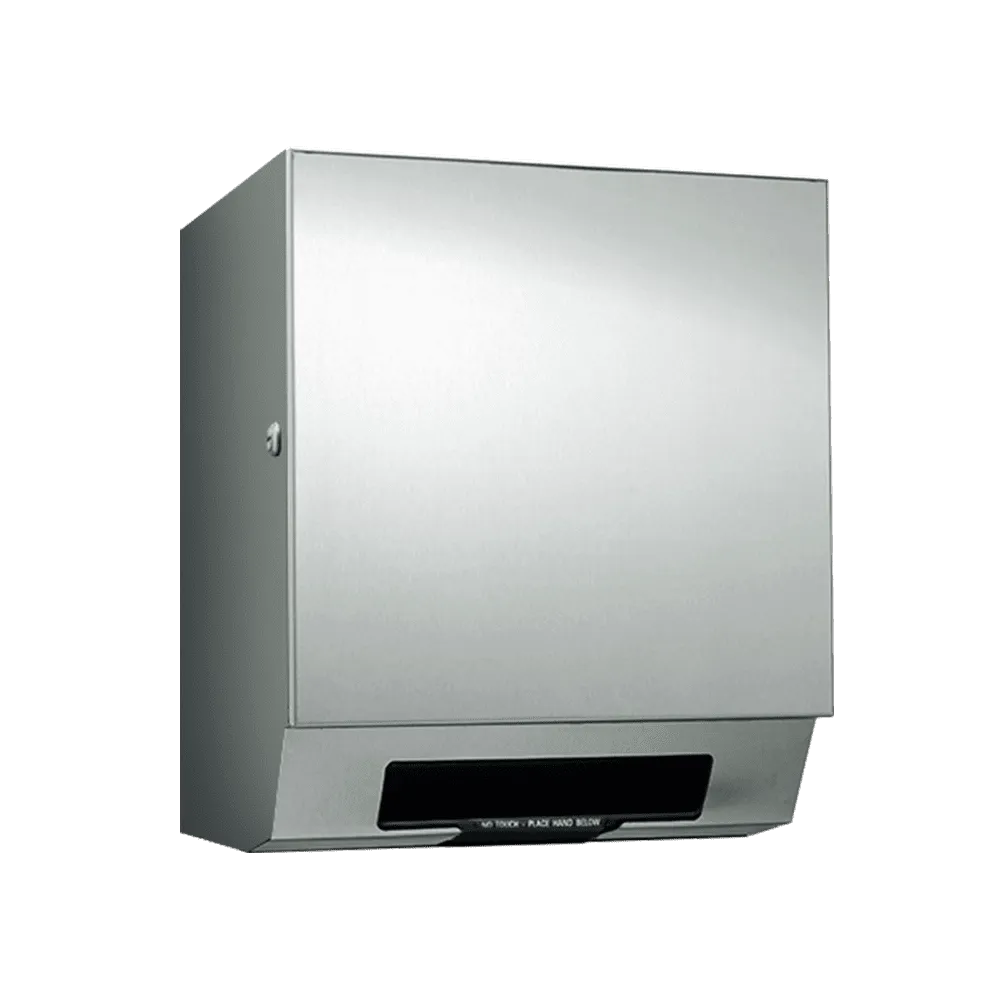

ASI 68523AC Simplicity™ Automatic Roll Towel Dispenser – 110–240V/AC – Surface Mounted is a high-efficiency, touch-free paper towel dispensing system designed for commercial restroom environments requiring reliable performance and flexible installation. Featuring AC-powered operation, adjustable dispensing controls, and durable stainless steel construction, this surface-mounted unit delivers consistent hygienic towel dispensing with minimal maintenance.
- Automatic touch-free dispensing uses proximity sensor activation for hygienic, hands-free operation.
- AC-powered low-voltage system includes an internal adapter compatible with 110–240V AC, 50/60 Hz (5VDC @ 1A output).
- High-capacity roll system accommodates standard 8″ towel rolls up to 800 ft. (244 m) long.
- Stub roll capability ensures continuous dispensing by utilizing partial rolls before switching to a full roll.
- Adjustable dispensing settings allow customization of towel length, delay timing, and economy mode via three-position switches.
- LED status indicator provides visual feedback for sensing operation and system status.
- Locking front door helps prevent unauthorized access and protects towel supply.
- Automatic roll transfer allows seamless operation when switching from partial to full rolls.
- Heavy-duty 304 stainless steel construction ensures durability, corrosion resistance, and easy maintenance.
- No. 4 satin finish provides a clean, professional appearance for commercial washrooms.
- Heavy-duty staked piano hinge ensures long-term durability and secure operation.
ASI 68523AC Automatic Roll Towel Dispenser Specifications
| Feature | Details |
|---|---|
| Model | ASI 68523AC Simplicity™ |
| Product Type | Surface-mounted automatic roll towel dispenser |
| Operation | Automatic proximity sensor activation |
| Power Supply | Internal low-voltage adapter (included) |
| Electrical Input | 110–240V AC, 50/60 Hz |
| Electrical Output | 5VDC @ 1A |
| Roll Capacity | One 8″ standard towel roll up to 800 ft. (244 m) long |
| Stub Roll Capability | Continuous dispensing via partial roll transfer |
| Dispensing Controls | 3-position switches for length, delay, and economy settings |
| Status Indicator | LED sensing and operation indicator |
| Material | Heavy-duty 304 stainless steel |
| Finish | No. 4 satin finish |
| Door Security | Locking door with tumbler lock |
| Hinge Type | Heavy-duty staked piano hinge |
| Mounting Type | Surface mounted |
| Dimensions | 15-1/4″ W × 18-5/16″ H × 9-1/2″ D (387 × 465 × 241 mm) |
| Use Case | Commercial restrooms, offices, schools, healthcare facilities, hospitality, retail spaces |
