Recessed Hand Dryer Wall Depth Requirements Guide
Most contractors assume a recessed hand dryer is simply a surface-mounted unit pushed into a hole. That misconception leads to failed inspections, ADA violations, and expensive rework. Recessed hand dryer wall depth requirements are precise, model-specific, and tied directly to federal accessibility law. Getting them wrong is not a minor oversight. This guide covers the technical specifications, ADA protrusion rules, wall-type considerations, and step-by-step measurement practices you need to plan and execute a compliant recessed installation the first time.
Table of Contents
Key takeaways
| Point | Details |
|---|---|
| Wall cavity depth range | Most recessed units require a cavity depth of 4 to 6 inches depending on the specific model. |
| ADA protrusion limit | ADA Section 307.2 prohibits any object mounted 27 to 80 inches above the floor from protruding more than 4 inches into circulation paths. |
| Measure final protrusion | Verify the actual protrusion after installation, not just the rough-in cavity, to confirm compliance. |
| Wall type determines feasibility | Masonry walls support deeper recesses; metal stud walls may require custom framing before installation. |
| Plan early in new construction | Coordinating recessed dryer specs with rough-in framing during construction prevents costly retrofits later. |
Recessed hand dryer wall depth requirements explained
The industry term for what most people call a “recessed” installation is a flush-mounted or in-wall installation. Understanding this distinction matters because manufacturer documentation often uses both terms interchangeably, and spec sheets may list “in-wall depth” as the critical measurement rather than “recess depth.”
Typical recessed wall boxes require a cavity depth of approximately 4 to 6 inches depending on the model. That range is not arbitrary. It accounts for the motor housing, air inlet clearance, and the electrical junction box position within the cavity. A unit requiring 5.5 inches of cavity depth will not perform correctly or mount safely in a 4-inch cavity, even if it technically fits.
Standard hand dryer dimensions for recessed models generally follow this pattern:
-
Height: 16 to 28 inches depending on the unit type (vertical jet dryers run taller)
-
Width: 10 to 14 inches for most commercial models
-
Wall cavity depth: 4 to 6 inches (this is the number that controls your framing decision)
-
Finished protrusion: 0.5 to 2 inches beyond the wall surface after installation

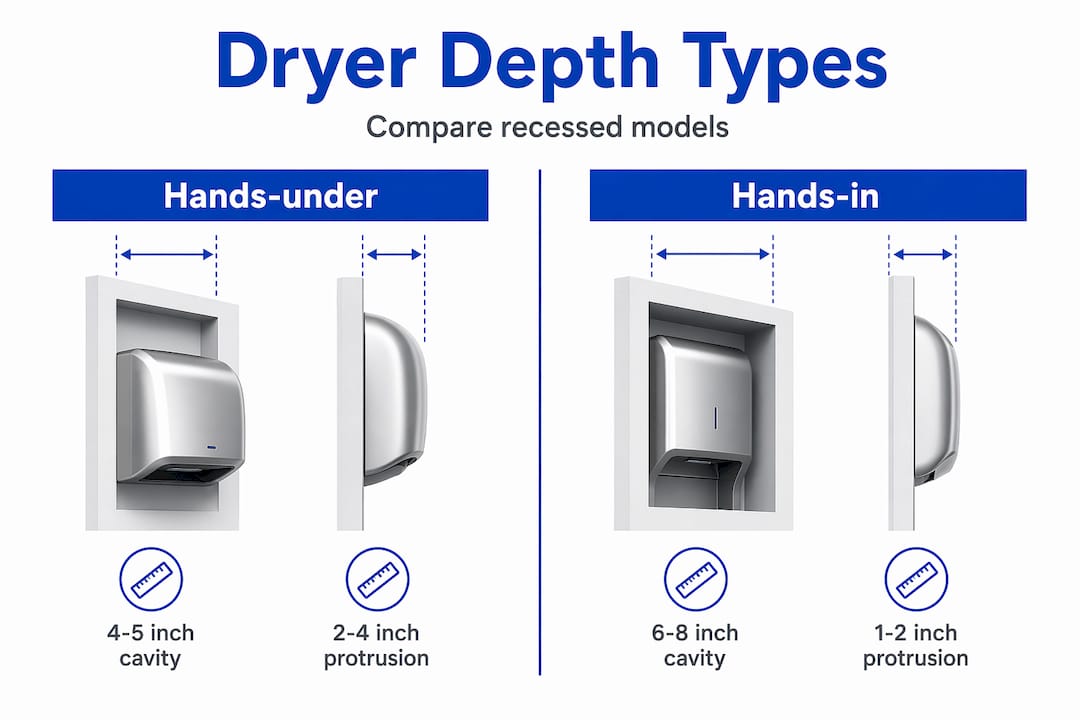

The depth requirement also changes based on product design. Hands-in or vertical-insertion dryers require deeper cavities because the user inserts their hands directly into the housing. Hands-under models that recess into the wall purely for ADA protrusion compliance may only require 4 inches of cavity depth. Always pull the manufacturer’s spec sheet before cutting.
| Model type | Typical cavity depth | Finished protrusion |
|---|---|---|
| Hands-under recessed | 4 to 5 inches | Under 1 inch |
| Hands-in vertical | 5 to 7 inches | Flush to wall |
| Slim surface-mounted (ADA) | No recess required | Under 4 inches |
Pro Tip: Always cross-reference the manufacturer’s recessed wall box kit dimensions against your as-built wall cavity measurements before finalizing your product order. Ordering a unit and then discovering the cavity is 0.75 inches too shallow forces a change order or a product swap.
ADA compliance and protrusion limits
ADA Section 307.2 mandates that any object mounted between 27 and 80 inches above the finished floor must not protrude more than 4 inches into a circulation path. This rule was written specifically to protect individuals with vision impairments who navigate with canes and cannot detect obstacles in the mid-torso range. A hand dryer that protrudes 5 or 6 inches at shoulder height is a genuine safety hazard, not just a paperwork problem.
Recessed installations address this requirement directly. Recessed units protrude less than an inch from the finished wall surface, which puts them well within the 4-inch limit. That near-zero protrusion is why recessed installations are the preferred method in new construction and high-traffic accessible restrooms.
Here are the ADA compliance steps every contractor must verify for recessed hand dryer installations:
-
Confirm mounting height. The bottom of the dryer housing must be mounted so the unit’s protruding elements fall within the 27-to-80-inch ADA measurement zone. Mounting heights below 27 inches or above 80 inches carry different protrusion constraints.
-
Measure finished protrusion, not rough-in depth. Misjudging protrusion after cover plate and trim installation is one of the most common compliance errors. Add the cover plate thickness to your calculation.
-
Check the approach direction. ADA protrusion rules apply differently when users approach parallel versus perpendicular to the wall. Narrow corridors with dryers on both sides require careful layout review.
-
Document your measurements. Record wall depth, cavity dimensions, and finished protrusion measurements before closing up the wall. This documentation protects you during post-construction restroom compliance inspections.
-
Account for grab bars and adjacent fixtures. Recessed dryer placement near grab bars or towel dispensers can create combined protrusion scenarios that cumulatively create violations.
“The 4-inch protrusion rule is the simplest and most impactful compliance factor. Recessed installation virtually eliminates this risk when executed correctly.”
Improper installation or insufficient wall depth can produce protrusion violations that trigger costly replacements or civil penalties. For facilities under the Americans with Disabilities Act, the exposure is not limited to fines. Non-compliant fixtures create liability in personal injury claims. Plan your ADA restroom requirements review before rough-in framing, not during punch-list.
Installation challenges by wall type
Wall construction type is one of the most underestimated variables in recessed hand dryer installations. Contractors experienced in new construction sometimes struggle when retrofitting existing facilities because the wall system imposes hard limits on achievable cavity depth.
Drywall over metal stud framing is the most common wall type in commercial restrooms. Standard 3.5-inch stud framing with half-inch drywall on both faces gives you roughly 3.5 inches of usable cavity. That falls short of the 4-to-6-inch range most recessed models require. The solution is to frame out a dedicated recessed box using blocking between studs, creating a deeper cavity at the specific mounting location.
Concrete masonry unit (CMU) walls present a different challenge. CMU walls are structurally rigid, which means cutting the recess requires core drilling or chipping, and depth is limited by block thickness. Standard 8-inch CMU block can accommodate a 4-to-5-inch recess on interior partitions, but you must verify block thickness and confirm no rebar or conduit runs through the cutting zone before work begins.
Masonry and tile-finished walls add the complication of finished surface materials. Cutting through tile generates significant debris and creates waterproofing re-work. In wet-area restrooms, the recess itself must be properly sealed and waterproofed to protect the wall cavity from moisture infiltration.
Pro Tip: In retrofit projects where wall depth is insufficient, check whether the specified model offers a surface-mounted ADA alternative. Slim low-profile dryers engineered with a total depth under 4 inches can meet ADA protrusion limits without any recessing. This option saves significant labor cost when the wall type makes recessing impractical.
Coordinating the recessed installation with electrical and mechanical rough-ins is another area where depth problems originate. If a 20-amp circuit rough-in is positioned inside the planned recess zone, relocating the box costs time and money. Share the dryer’s recessed wall box template with your electrician before rough-in begins.
Measurement and installation best practices
Accurate measurement is where compliance is won or lost. Here is the process that eliminates surprises on installation day:
-
Obtain the manufacturer’s recessed kit template. Most manufacturers supply a paper or cardboard template specifying the exact rough opening dimensions. Use it. Do not dimension from the dryer unit itself.
-
Measure the existing wall cavity depth before ordering. Probe the wall at the planned mounting location with a depth gauge or a straightedge and ruler. Confirm the available depth matches the model’s wall cavity specifications.
-
Mark the centerline and mounting height on the wall. ADA mounting height for hand dryers is typically set so the activation sensor or opening is reachable from a wheelchair, generally with the unit bottom between 15 and 48 inches above the floor depending on reach range requirements.
-
Cut the rough opening to template dimensions. Use a rotary tool or oscillating saw for drywall. For CMU, use a core drill. Do not overcut; a larger-than-specified opening compromises the mounting flange’s ability to secure the unit.
-
Install the manufacturer’s recessed wall box or kit. Using the manufacturer’s kit rather than field-fabricated blocking ensures the cavity depth is correct, the unit is anchored securely, and the electrical knockout aligns with the circuit rough-in.
-
Pull the electrical connection and verify ground. Review hand dryer wiring requirements before energizing. Most commercial recessed dryers require a dedicated 20-amp circuit.
-
Measure finished protrusion before finalizing trim. With the unit seated in the box and the cover plate installed, hold a straightedge flat against the wall surface and measure the projection. Record this number.
Pro Tip: Take a photo of the cavity with a tape measure in frame before closing the wall. This documentation takes 30 seconds and provides proof of compliance if the installation is ever questioned during an inspection or legal review.
The most common installation error is assuming the rough-in cavity depth equals the compliant depth. Cover plates, trim rings, and sensor housings all add projection. Always verify final protrusion measurement against the 4-inch ADA limit after all components are installed.
Our perspective on getting wall depth right
We’ve seen facilities spend twice on the same installation. The first time, a surface-mounted hand dryer goes up quickly without anyone checking protrusion. The second time, the ADA complaint recess kit arrives, the fixture comes down, and the contractor is back to cut a recess that should have been planned from the start.
The depth requirement is not the complicated part. What catches teams off guard is the interaction between wall type, electrical rough-in position, and the manufacturer’s specific cavity dimensions. Those three variables rarely align perfectly without deliberate coordination. In my experience, the projects that go smoothly are the ones where the recessed dryer spec sheet is in the hands of the framing crew before walls are closed.
For retrofit projects, we’ve found that a site visit specifically to probe wall depths and identify stud layout pays for itself every time. What looks like a standard drywall partition sometimes turns out to be a wall type with hidden constraints that change the entire installation approach. One hour of assessment before ordering a unit prevents a two-day change order.
The contractors who handle this well treat recessed hand dryer installation the same way they treat specialty plumbing fixtures: verify the rough-in requirements first, confirm the wall can support them, and only then place the order.

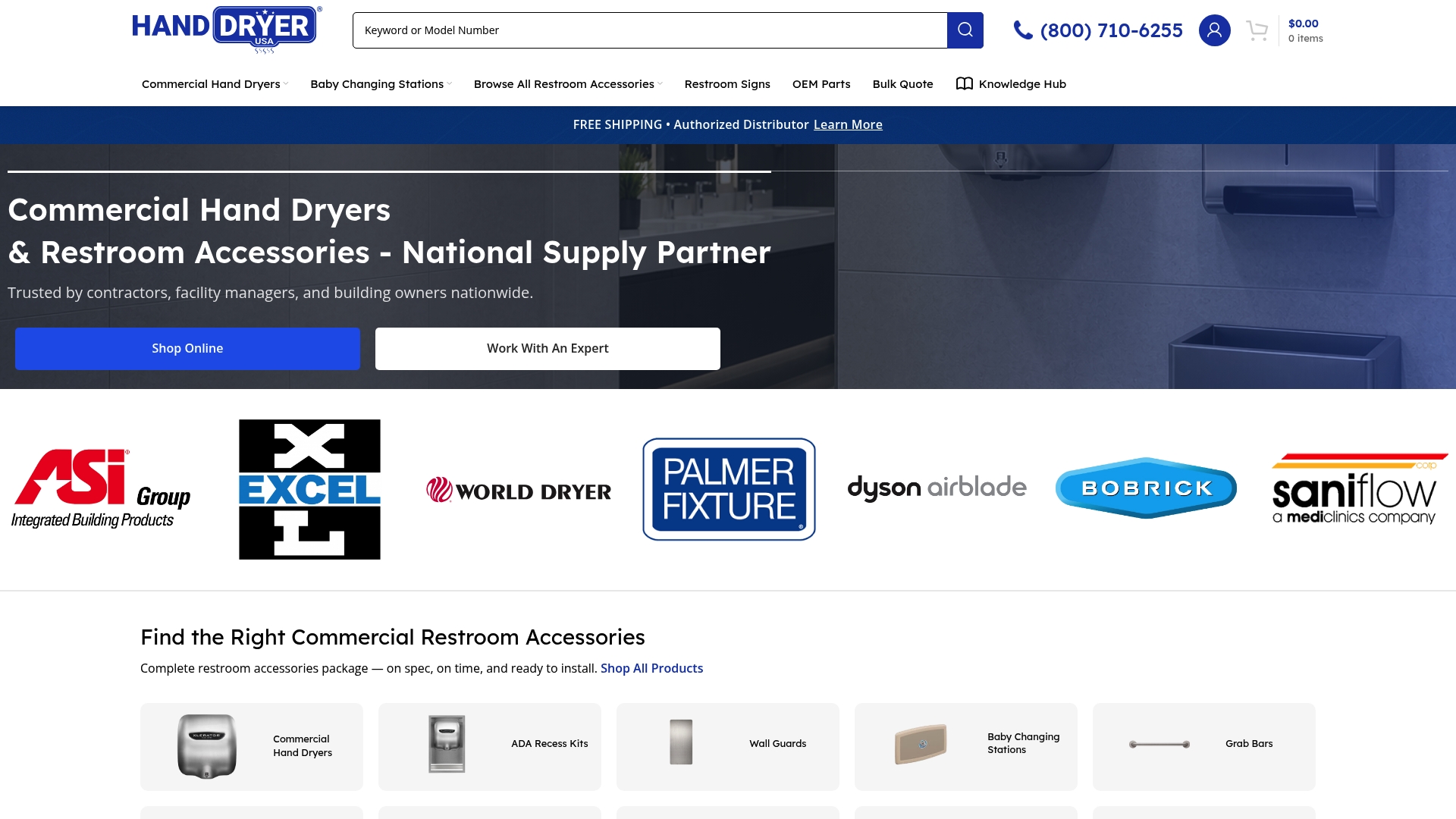

Find ADA-compliant recessed hand dryers at HandDryerUSA
HandDryerUSA works with contractors and facility managers across the country to specify and source recessed hand dryers that meet exact wall cavity and ADA requirements. Whether you’re planning new construction or retrofitting an existing restroom, the product selection at HandDryerUSA covers units from Excel Dryer, ASI, World Dryer, Dyson, Palmer Fixture, Saniflow and Bobrick, with specification sheets available for every model.
Browse the full selection of recessed and hands-in models with cavity depth specifications listed for each product. For projects where recessing is not feasible, the ADA-compliant touchless dryer category includes slim-profile units that meet protrusion limits without wall modification. Contact the HandDryerUSA technical team directly for project-specific guidance on model selection, wall box compatibility, and compliance documentation.
FAQ
What is the standard wall cavity depth for recessed hand dryers?
Most recessed hand dryer models require a wall cavity depth of 4 to 6 inches. Always verify the specific model’s spec sheet because hands-in vertical dryers typically need more depth than standard hands-under recessed units.
How does ADA Section 307.2 apply to recessed hand dryer installations?
ADA Section 307.2 prohibits objects mounted between 27 and 80 inches above the floor from protruding more than 4 inches into a circulation path. Recessed units protrude less than 1 inch from the wall surface, which satisfies this requirement.
Can you install a recessed hand dryer in a metal stud wall?
Yes, but standard 3.5-inch metal stud framing provides less cavity depth than most recessed dryers require. You will need to add blocking or a custom-framed box to achieve the 4-to-6-inch cavity depth the unit specifies.
What happens if you measure rough-in depth but not finished protrusion?
Cover plates and trim components add projection beyond the rough cavity. A unit that appears compliant at rough-in can exceed the 4-inch ADA protrusion limit once trim is installed, resulting in a violation that requires reinstallation.

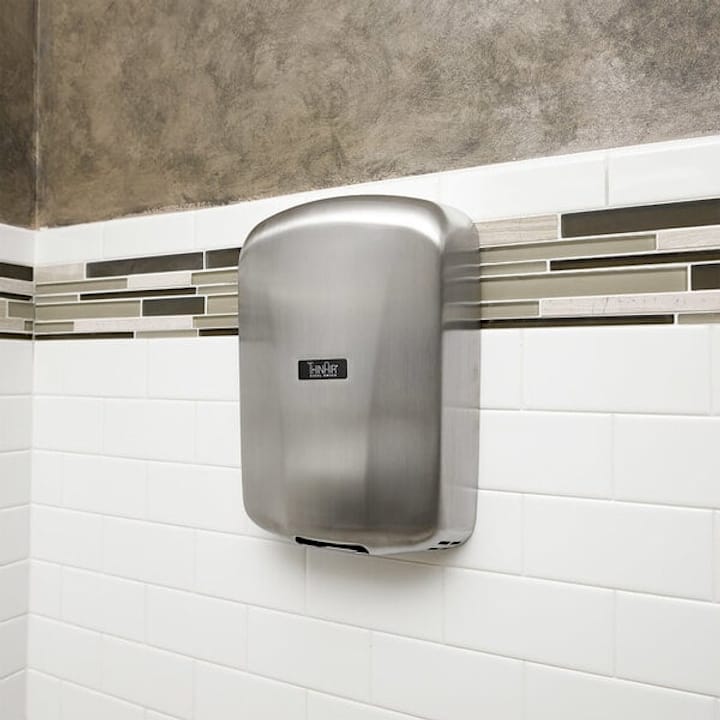

Do slim surface-mounted dryers eliminate the need for recessing?
Slim, low-profile models engineered with a total depth under 4 inches can meet ADA protrusion limits without recessing. These units are a practical solution for retrofits where wall depth or construction type makes recessing impractical or cost-prohibitive.
