Features & Benefits

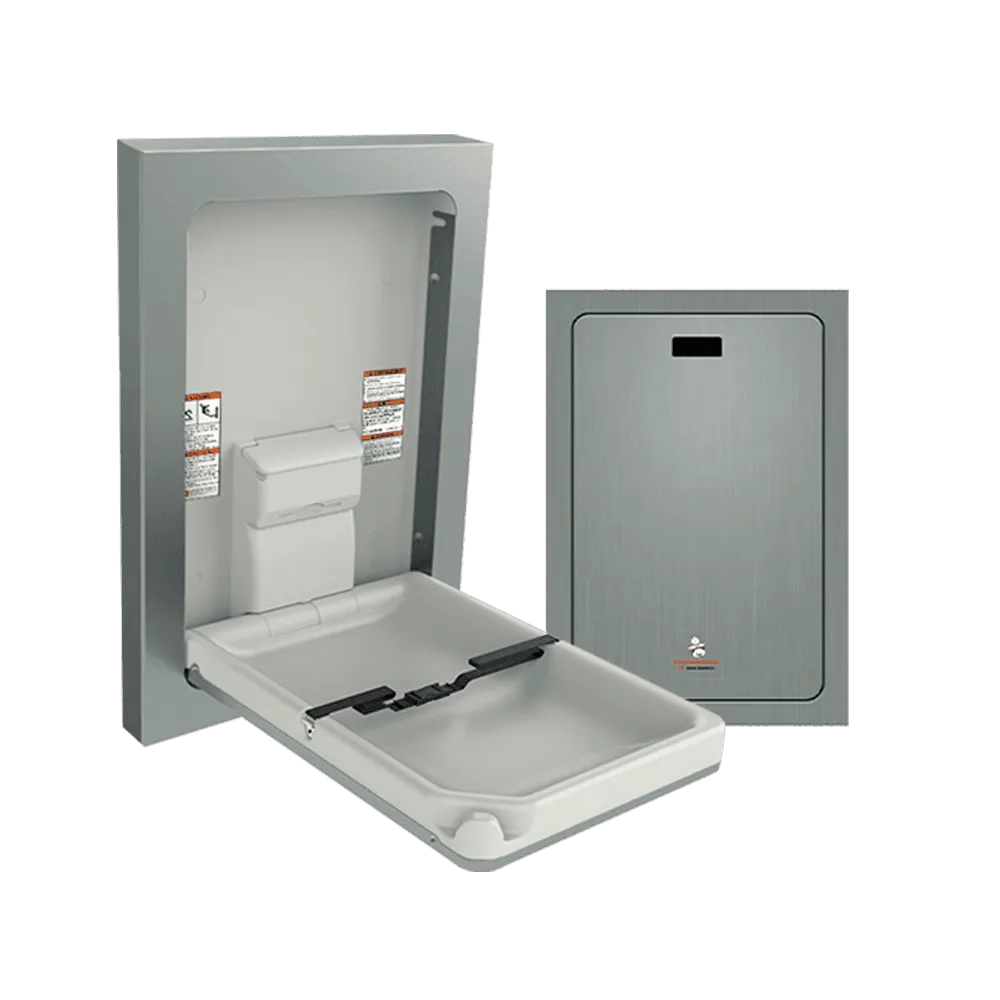

ASI 9017-9 Vertical Baby Changing Station combines stainless steel durability with hygienic, heavy-duty performance for commercial restroom environments. Featuring an 18-gauge Type 304 stainless steel door facing and collar, this surface-mounted unit provides a professional appearance with long-lasting corrosion resistance. Designed for infants up to 3.5 years old and 50 lb (23 kg), the ASI 9017-9 offers secure, convenient, and easy-to-operate diaper changing in high-traffic facilities.
- 18-gauge Type 304 stainless steel door facing and collar deliver durability, strength, and a modern finish.
- Surface-mounted design with stainless steel collar allows installation without wall recessing.
- FDA-approved fungus- and bacteria-resistant plastic platform supports hygienic restroom conditions and easy cleaning.
- Designed for infants up to 3.5 years old (50 lb / 23 kg) with a contoured platform shaped to help prevent rolling.
- Heavy-duty construction tested in accordance with ASTM F2285-04 and EN 12221-1 standards and capable of supporting up to 250 lb (113 kg) static load.
- One-hand open/close operation allows activation from any location; handle cavity on door face provides a preferred grip point.
- Low-force accessible design operable with less than 5 lb of force (22.2 N) and requires no tight grasping, pinching, or wrist twisting.
- Integrated bed liner/towel dispenser presents liners or towels for user hygiene and convenience.
- Sanitary dispenser lid protects contents and allows easy loading of wipes or liners.
- Adjustable safety strap with Sure-Lock latch resists unintended opening and releases only with opposing finger pressure by an adult caregiver.
- Service-friendly refill access allows liners or towels to be replenished quickly by maintenance personnel as required.
ASI 9017-9 Baby Changing Station Specifications
| Feature | Details |
|---|---|
| Model | ASI 9017-9 |
| Product Type | Surface-mounted vertical baby changing station |
| Door Facing & Collar | 18-gauge Type 304 stainless steel |
| Material (Platform) | FDA-approved fungus- and bacteria-resistant plastic |
| Mounting | Surface mounted |
| Intended User | Infants up to 3.5 years old; maximum recommended child weight 50 lb (23 kg) |
| Load Rating | Tested to ASTM F2285-04 and EN 12221-1; supports up to 250 lb (113 kg) static load |
| Operation | One-hand open/close; handle cavity on door face |
| Operating Force | Less than 5 lb (22.2 N); no tight grasping, pinching, or twisting required |
| Safety Features | Contoured platform; adjustable safety strap; Sure-Lock latch |
| Hygiene Features | Integrated bed liner/towel dispenser with protective lid |
| Dimensions (Closed) | 28-1/4″ W × 39-5/32″ H × 3-5/16″ D (718 × 995 × 100 mm) |
| Dimensions (Open) | 28-1/4″ W × 39-5/32″ H × 32-3/8″ D (718 × 995 × 822 mm) |
| Use Case | Commercial restrooms, healthcare, hospitality, airports, schools, public facilities |
