Features & Benefits

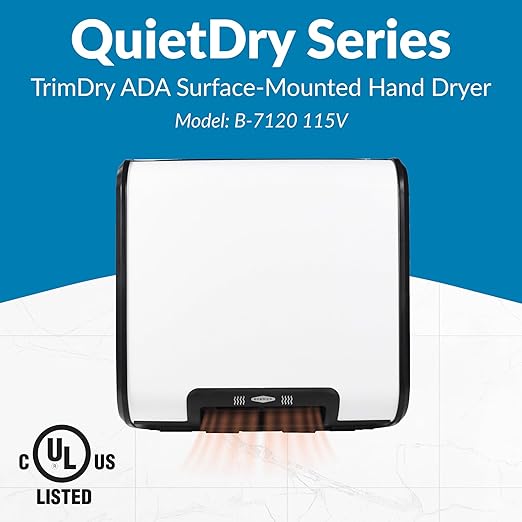

Bobrick B-7120 QuietDry™ TrimDry™ Hand Dryer is a slim-profile, surface-mounted ADA-compliant dryer designed for quiet, efficient, and vandal-resistant performance. With dual air outlets, automatic infrared activation, and a 10-year limited warranty, it is a reliable choice for commercial restrooms seeking long-term durability and energy savings.
- QuietDry™ performance with dual air outlets that create a swirling airflow pattern for comfortable hand drying in under 25 seconds.
- Slim 4″ profile ensures full ADA compliance without recessing the unit into the wall.
- No-touch, automatic operation using an infrared sensor that activates only when hands are present—reducing energy consumption and increasing hygiene.
- Durable steel construction: white-painted mild steel cover on B-7120, or stainless steel #304 with satin finish on B-7128 (model series).
- Vandal-resistant design including recessed hex screws, vandal-resistant air inlet grille, and robust mounting base.
- Universal 1/7 HP motor with resilient mounting and thermal overload protection for long service life.
- Advanced safety features — automatic thermal-overload protection on the heating element and motor, plus automatic 1.5-minute shutoff if blocked.
- Long-term assurance: 10-year limited warranty (3 years on motor brushes).
Bobrick B-7120 Hand Dryer Specifications
| Feature | Details |
|---|---|
| Model | Bobrick B-7120 (white painted steel cover) |
| Voltage Options | 115V AC, 15A, 1725W, 50/60 Hz (cULus Listed) 208–240V AC, 6.8–7.8A, 1400–1900W, 50/60 Hz (cULus, VDE, CE) |
| Drying Time | Less than 25 seconds |
| Operation | Automatic hands-free infrared sensor |
| Cover Material | 22-gauge mild steel, zinc plated, high-gloss white epoxy finish UL 94-5VA black plastic trim and side panels |
| Motor | Universal, 1/7 HP, 8000 rpm, thermal overload protection |
| Airflow | Dual balanced centrifugal fans, 71 CFM |
| Heating Element | Nickel-chrome coils in mica frame, with thermal overload protection |
| Mounting Style | Surface-mounted ADA compliant |
| Profile Depth | 4″ (100 mm) from finished wall |
| Dimensions | 13-25/32″ H × 13-19/32″ W × 4″ D (350 × 345 × 100 mm) |
| Recommended Mounting Heights | Children ages 3–4: 36″ AFF Children ages 5–8: 40″ AFF Children ages 9–12: 44″ AFF Universal Design: 48″ AFF |
| Safety Features | Automatic shutoff after 1.5 minutes if obstructed Thermal overload protection on motor and heating element |
| Certifications | cULus Listed, VDE Approved, CE Marked, ROHS Compliant |
| Warranty | 10-year limited warranty (parts) 3-year motor brush warranty |
