FOUNDATIONS® 5211089 Horizontal-Folding, Surface-Mounted Baby Changing Station in Cream HDPE- Includes EZ Mount™ Backer Plate

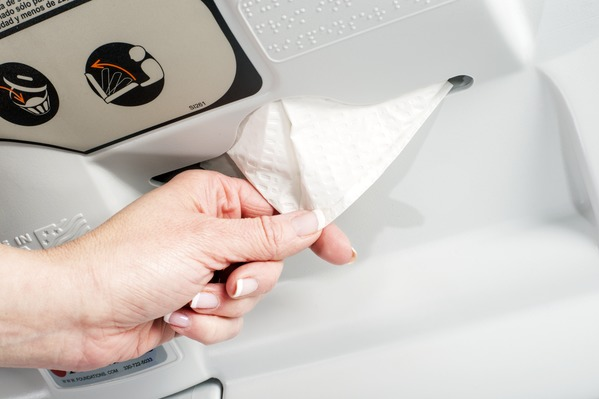

This durable and attractive baby changing station (Model 5211089) is made of FDA approved high-density polyethylene (HDPE) which is CREAM in color.  It is easy to clean and resistant to odors and bacteria growth. The safety message and graphics are molded into the polyethylene in English, Spanish & French. In addition, a built-in dispenser for sanitary liners is conveniently located just above the changing surface when folded open (liners not included). Total capacity of the dispenser is approximately 100 liners.

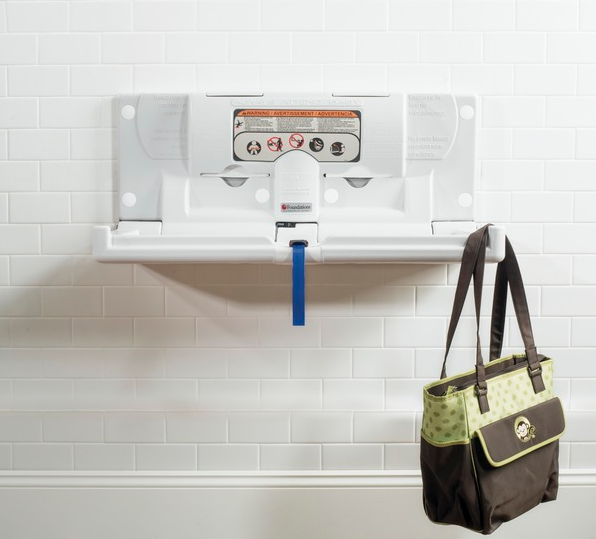

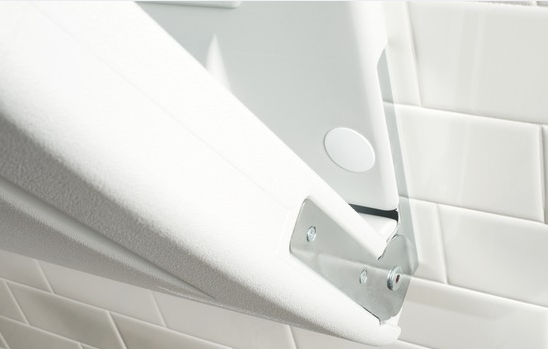

This fold-down baby changing table is designed to be surface mounted to the wall using the included hardware. The included EZ Mount™ Backer Plate reduces installation time and enables unit to be attached to the wall by only one installer.  It also facilities difficult and retrofit installations by eliminating the need for structural blocking and ensures solid connection with two studs. The station folds down horizontally so the adult is facing the wall while changing the infant whose is lying parallel to the wall. With a reinforced steel-on-steel hinge running the full length of the station, the 5211089 meets all ASTM F2285 requirements for static load performance when properly installed. A pneumatic shock mechanism provides for slow, controlled opening and closing of the bed.  Both the pneumatic shock and metal hinge mechanism are fully concealed (regardless of bed position) to eliminate tampering and possible pinch hazard.  Although designed for infants that weigh no more than 50 lbs., in testing the 5211089 easily supported five times as much with minimal deflection of the “bed” from horizontal.

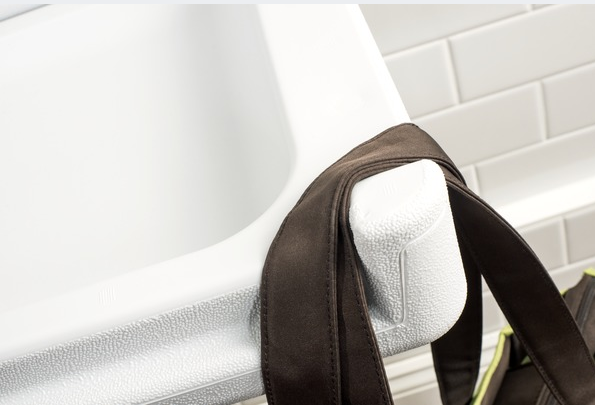

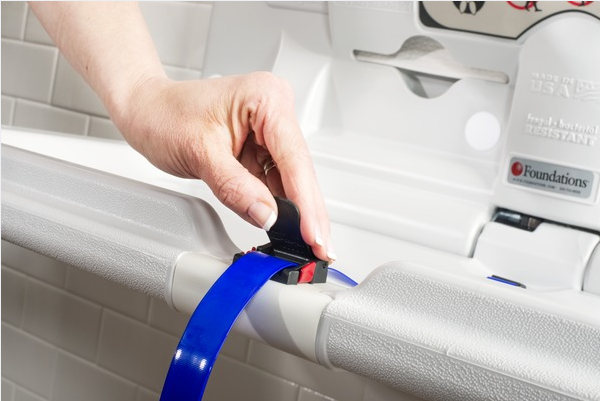

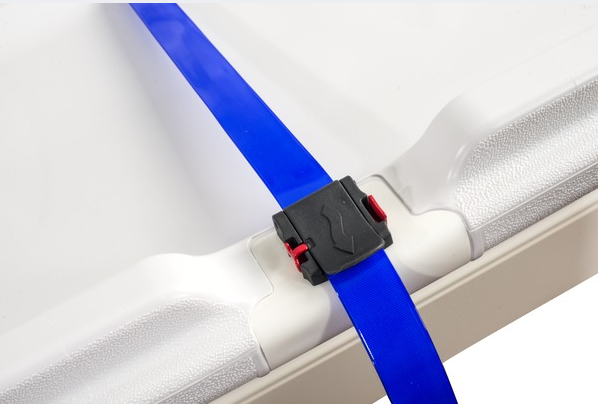

The contoured changing surface comes complete with a smooth nylon belt with a Thermoplastic Polyurethane coating. The cam-buckle of the safety strap is adjustable with one hand.  Two convenient bag or purse hooks are built in and labeled. Folded closed the changer’s dimensions are 34-1/4″W x 15-3/8″H x 4″D. When open the changer extends out from the wall 17-1/2″. When properly installed, this changer complies with the highest Americans with Disabilities Act (ADA) regulations. A door sign alerting your customers to the presence of a changing station within the restroom is included; the easily understood symbol is universally recognized. Mounting instructions and hardware (wood screws & washers) included for either current or new construction.
