MANUFACTURER RESOURCES

• World Dryer SMARTdri Plus Product Spec Sheet

FEATURES & BENEFITS:

• Fast Drying time (10 to 12 seconds); 250 mph max airspeed
• Automatic, Infrared Sensor Activated – no need to touch any surface on the hand dryer
• Cover available in 2 Material & 4 Different Color/Finish options: White Epoxy on Aluminum, Black Epoxy on Aluminum, Polished (Bright) Stainless Steel, & Brushed (Satin) Stainless Steel – this listing is for the K-162P2 Black Aluminum
• Adjustable three-speed motor controls and on/off heating allow for customized drying time, sound level, and energy savings

• High-intensity single-port nozzle maximizes drying effectiveness
• Energy efficient utilizing only 12% energy of traditional dryers
  and up to 50% less energy than competitive high-speed hand
  dryers.
• Coarse air filter (reusable) at the intake removes large particles from the air stream
• Low sound level (68 dB without hands present; 88 dB with hands)
• Available in two voltages – either 110/120V or 208V-240V.
• Incorporates antimicrobial technology inhibiting the growth of bacteria, mold, and fungus extending the dryer’s service life
• Extended life motor with 2-3 times longer service life than
  competitive high-speed dryers
• Modern, sleek, contemporary design
• IP24 rating – protection against harmful water ingress
• 10 years limited warranty (7 years on motor & sensor) excludes filter
• UL®, CSA®, and CE® approved
• Durable and vandal resistant with 2 vandal-proof screws and lock with Special wrench
• Optional recess kit makes this surface-mounted hand dryer ADA compliant with the 4″ protrusion rule (See separately listing for WORLD DRYER® KKR-973 SMARTdri Recess Kit).

The K-Series SMARTdri Plus hand dryer is the most energy efficient and fastest hand dryer made by the World Dryer Corporation. It’s both contemporary and stylish in design. But the most unique feature of the Model K and the thing that sets this dryer apart from all the rest is its intelligent, flexible control technology. The owner has the option of having the heating element activate with the motor or remain off during the drying cycle. In addition, the motor has 3 speeds (Hi, Med & Low) for the owner to choose from. With these two variables, the owner can customize the air flow, dry time, sound quality, and energy consumption to fit any application environment. Sound levels as low as 68 decibels. At its highest motor speed and with the heating element set to automatically activate, the Model K is capable of taking the user’s hands from wet to dry in 10 seconds (3 times faster than traditional dryers). Extremely durable and vandal-resistant, the Model K-162P2 SMARTdri Plus has a die-cast aluminum cover. The cover is then finished with high-gloss black epoxy paint that has a patented anti-microbial, anti-bacterial additive blended into the paint. This additive helps reduce the growth of harmful organisms such as bacteria, mold, and fungi. The fixed nozzle is constructed of die-cast zinc alloy and finished with bright chrome plating. The SMARTdri Plus is considered relatively quiet for the speed and air volume produced. The brush-type motor operates at an incredible speed of 23,400 RPM and is capable of producing an air velocity of 22,000 linear feet per minute or 250 mile per hour (78 CFM air volume) and a temperature increase of 70°F at hand level (approx. 4 in. below nozzle). Both the motor and the 400 watt heating element (if set by the owner in the ON position) are activated automatically by an infrared sensor. Dry time is dependent on the variable settings, but the length of the run time is determined by the user. As soon as the user’s hands are removed from under the unit, the drying cycle is terminated. This unit has an impressive water ingress rating of IP24. Mounting instructions and warranty information are included. The World SMARTdri Plus intelligently combines the flexibility you want with the energy efficiency you need, all while providing the performance your customers demand.

PLEASE NOTE: With the purchase of the KKR-973 SMARTdri Recess Kit, the World K-162P2 can be made ADA compliant – See KKR-973 Recess Kit listing.

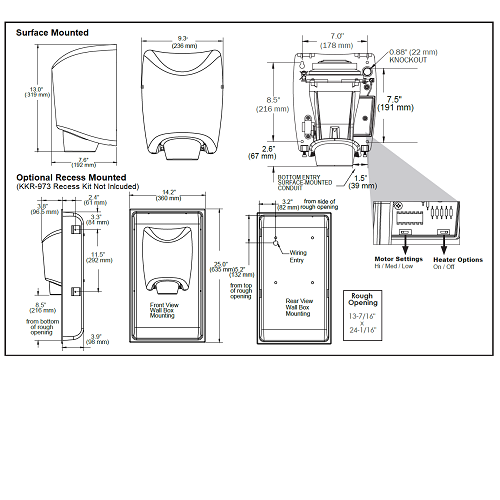

Dimensions: 12.5″ (319 mm) High x 9.3″ (236 mm) Wide x 7.6″ (192 mm) Deep;  Weight: 11.6 lbs. (5.2 kg)

Electrical Specification: 110/120 Volts; 3.3 to 10.0 Amps; 400 to 1200 Watts; 60 Hz (Requires a dedicated 15 Amp circuit)

or  208 – 240 Volts; 1.8 to 5.2 Amps; 425 to 1250 Watts; 60 Hz
