Features & Benefits

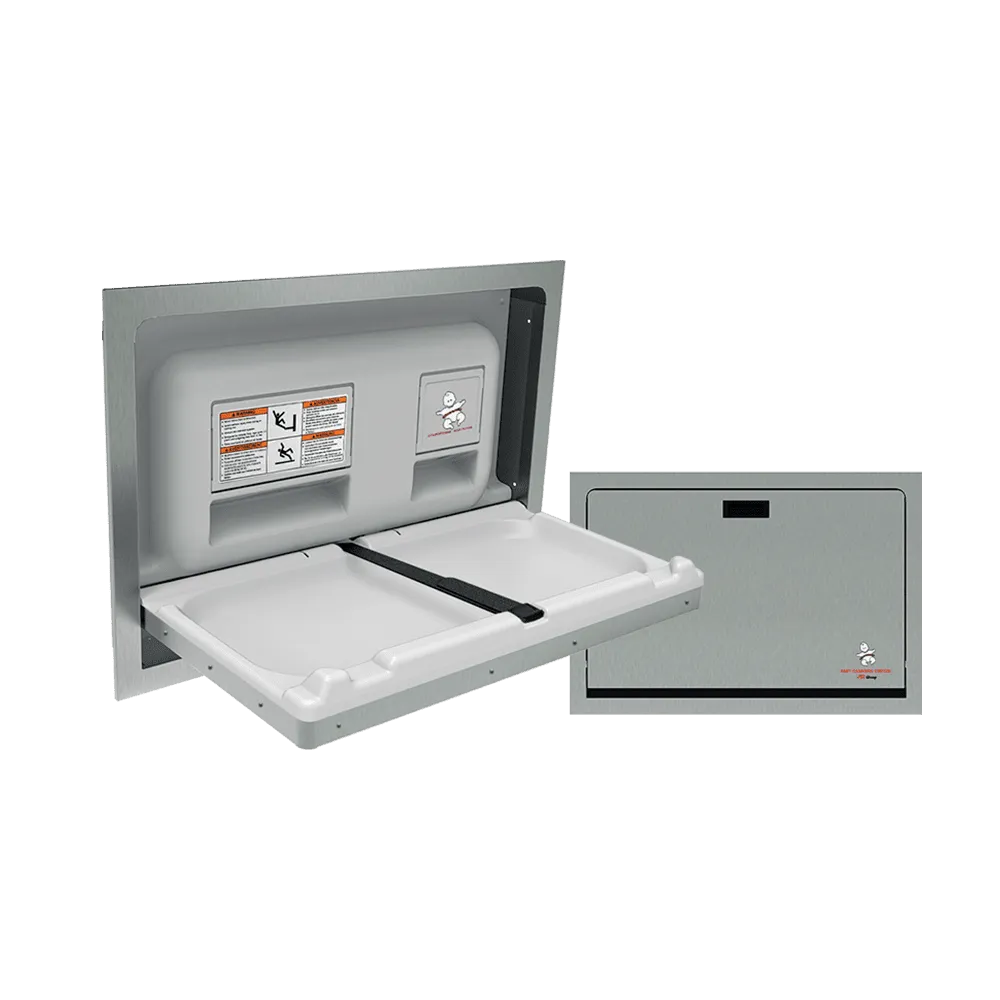

ASI 9013 Recessed Baby Changing Station is an ADA-compliant unit engineered for durability, safety, and long-term performance in commercial restroom environments. Constructed with welded stainless steel and satin-finished exposed surfaces, this model offers a clean, professional appearance with dependable structural integrity. The high-impact-resistant plastic changing surface is easy to clean, while assisted one-handed operation and an adjustable safety strap provide convenience and child protection.
- Welded stainless steel construction ensures long-lasting durability and reliable performance.
- Satin-finish exposed surfaces provide a professional, easy-to-maintain appearance.
- High-impact-resistant plastic changing surface offers strength and simplified cleaning.
- ADA Accessibility Standard compliant when properly installed.
- Pull handle with concealed spring assists smooth, controlled one-handed operation.
- Designed for infants up to 3.5 years old (50 lb / 23 kg) with a platform shaped to safely cradle the child.
- Two-part adjustable safety strap enhances child restraint and protection.
- Heavy-duty performance tested to ASTM F2285-04 and EN 12221-1 standards and capable of supporting up to 250 lb (113 kg) static load.
- Fungus- and bacteria-resistant plastic components help maintain hygienic restroom conditions.
ASI 9013 Baby Changing Station Specifications
| Feature | Details |
|---|---|
| Model | ASI 9013 |
| Product Type | Recessed baby changing station |
| Construction | Welded stainless steel with satin-finish exposed surfaces |
| Changing Surface | High-impact-resistant plastic |
| Mounting | Recessed wall installation |
| Compliance | ADA Accessibility Standard compliant (when properly installed) |
| Intended User | Infants up to 3.5 years old; maximum recommended child weight 50 lb (23 kg) |
| Load Rating | Tested to ASTM F2285-04 and EN 12221-1; supports up to 250 lb (113 kg) static load |
| Operation | Pull handle with concealed spring; one-hand open/close operation |
| Safety Features | Two-part adjustable safety strap; contoured platform |
| Dimensions (Open) | 37″ W × 25-1/2″ H × 17-3/4″ D (940 × 648 × 451 mm) |
| Dimensions (Closed) | 37″ W × 25-1/2″ H × 3/8″ D (940 × 648 × 10 mm) |
| Required Wall Opening | 34-1/4″ W × 22-3/4″ H × 3-3/4″ D (870 × 578 × 95 mm) |
| Use Case | Commercial restrooms, healthcare, hospitality, airports, schools, public facilities |
