Product Resources (Downloads)
Features & Benefits
- Fast Drying Performance: Dries hands completely in as little as 10–12 seconds, improving restroom traffic flow and reducing wait times.
- Cleaner-than-Air™ HEPA Filtration: Captures 99.97% of particles ≥ 0.3 μm, ensuring only purified air reaches hands and promoting a more hygienic environment.
- Antimicrobial Protection: Treated surfaces inhibit the growth of bacteria, mold, and fungus, helping to minimize stains, odors, and deterioration over time.
- Water Collection System: Integrated water reservoir prevents pooling and slipping hazards by keeping excess moisture contained.
- Smart LED Maintenance Display: Intuitive indicator lights signal when to empty the water tray or replace the HEPA filter, reducing downtime and maintenance guesswork.
- Durable & Quiet Operation: High-efficiency brushless DC motor extends product life while minimizing noise for user comfort.
- ADA Compliant & Space Efficient: Surface-mounted design ensures ADA compliance for accessibility while conserving wall space.
- Perfect for: High-traffic commercial restrooms such as airports, stadiums, schools, hospitals, and corporate facilities where hygiene, durability, and maintenance efficiency are essential.
Cost Savings: See how much the World Dryer V-649A VMAX® V2 can save your facility. Use the official World Dryer Savings Calculator to estimate your potential energy and cost reductions.
Hardwired Installation
This product is intended for hardwired installation only. It does not include or support a standard wall plug.
Touchless Operation
This product is designed for hands-free operation, helping to reduce cross-contamination and prevent germ spread.
ADA Compliant
This product meets all criteria established by the Americans with Disabilities Act (ADA) when mounted at the proper height and location.
U.S. Green Building Council (USGBC)
This product helps earn LEED credits. Dyson is a USGBC member, supporting sustainable building practices that conserve energy and reduce waste.
HEPA Filter Technology
This product features a certified HEPA filtration system that meets strict air quality standards, capturing 99.97% of particles ≥0.3 microns to ensure cleaner, safer airflow during operation.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
RoHS Compliant
This product complies with the standards imposed by the Restriction of Hazardous Substances Directive, which restricts the use of hazardous substances in electrical equipment.
Technical Specifications
| Model | World Dryer VMAX V2 (V-649A) |
| Cover Material & Finish | High-Impact ABS, Silver |

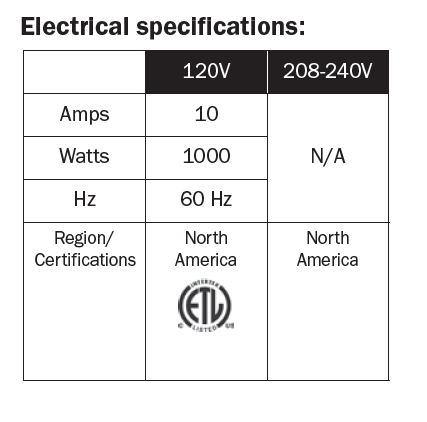

| Voltage | 110–120 V (60 Hz), 208–240 V (50/60 Hz), 220–240 V (50 Hz) |
| Power Consumption | 1000 W |
| Frequency | 50/60 Hz |
| Current | 10 A @ 120 V / 4.3 A @ 208–240 V |
| Recommended Circuit | Dedicated 15 Amp |
| Dry Time | 10–12 seconds |
| Air Velocity | 335 mph (539 km/h) |
| Airflow | 70 CFM (119 m³/h) |
| Noise Level | Quiet operation ideal for sound-sensitive areas |

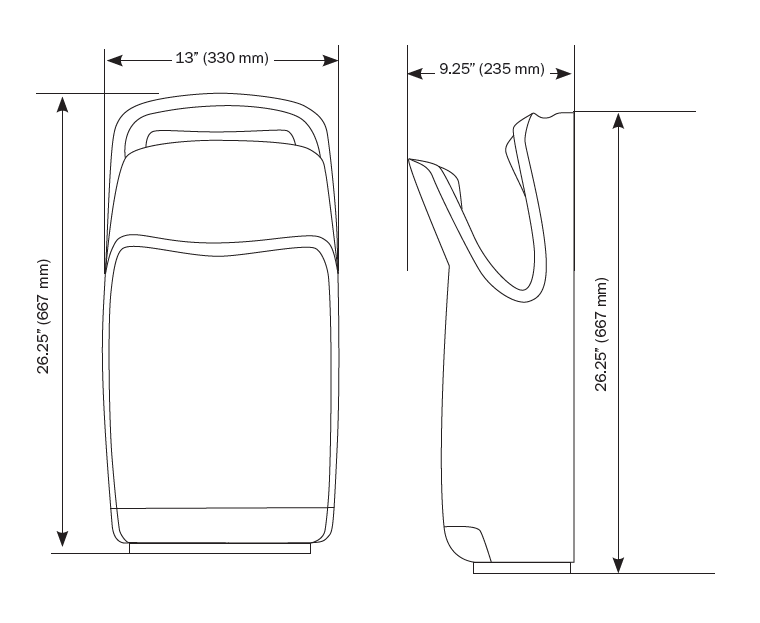

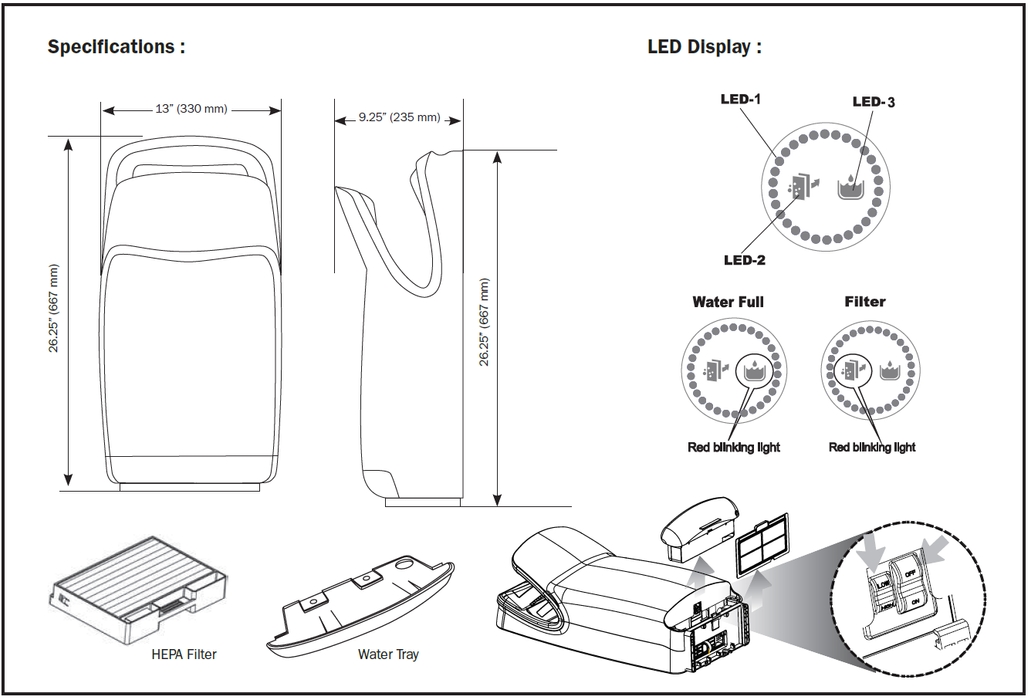

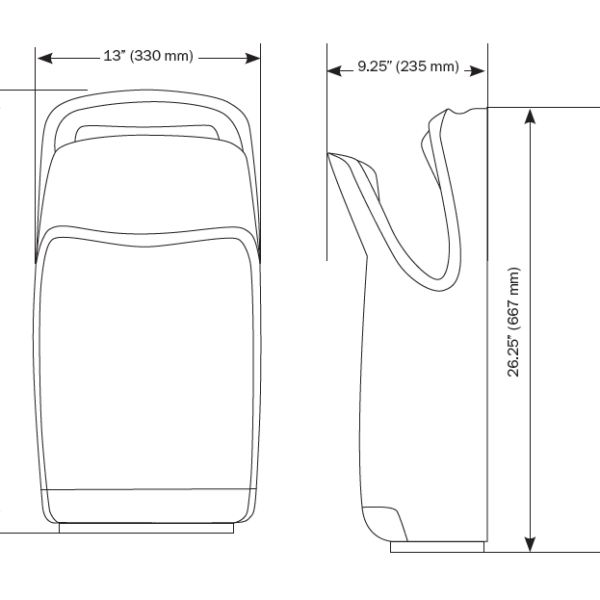

| Unit Dimensions (H × W × D) | 13" × 26.25" × 9.25" (330 × 667 × 235 mm) |
| Shipping Dimensions (H × W × D) | 16" × 28.5" × 12" (406 × 724 × 305 mm) |
| Unit Weight | 19.5 lbs / 8.9 kg |
| Shipping Weight | 25 lbs / 11.3 kg |
| Motor | Thermally-protected brushless DC motor |
| Filtration | Replaceable HEPA filter with odor-neutralizing tablet |
| Activation | Automatic, touch-free infrared sensor with 20-second vandal shut-off |
| Ingress Protection Rating | IP33 |
| Water Collection System | Built-in drain and removable water reservoir prevents floor pooling |
| Display Panel | LED indicators show filter and water tray status for easy maintenance |
| Warranty | 5-Year Limited Warranty |
| Certifications | UL, cUL, CE, and RoHS compliant |
